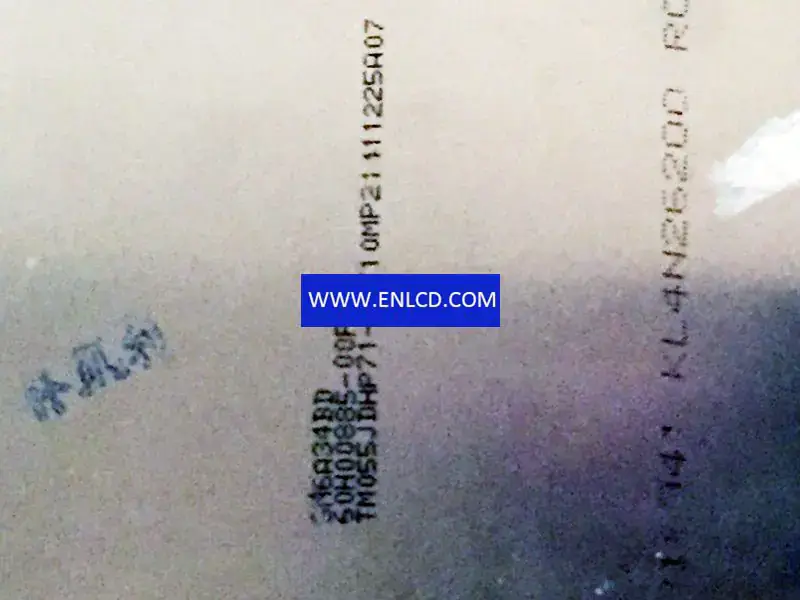

TM055JDHP71 Tianma LCD panel replacement

Brand：TIANMA
Diagonal Size：5.5 inch
Pixel Format：720(RGB)×1280[WXGA]
Active Area：68.04(H)×120.96(V) mm
Luminance：450 cd/m2 (Typ.)
View Direction：Symmetry
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Support Color：16.7M 72% (CIE1931)
Weight：TBD
Frame Rate： 60Hz
Model：TM055JDHP71
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 71.14(H)×130.76(V)mm
Contrast Ratio： 900:1 (Typ.) (TM)
Response Time：35 (Max.)(Tr+Td)
Operating Mode： SFT, Normally Black, Transmissive
Light Source： WLED [6S2P], W/O Driver
Designed For： Mobile Phone,
Touch Panel：Without
Interface Type： 30 pinsMIPI (4 data lanes), Connector
Power Supply： 1.8/5.5/-5.5V (Typ.)(IOVCC/VSP/VSN)
Environment： Operating Temperature: -20 ~ 60 °C; Storage Temperature: -30 ~ 70 °C
