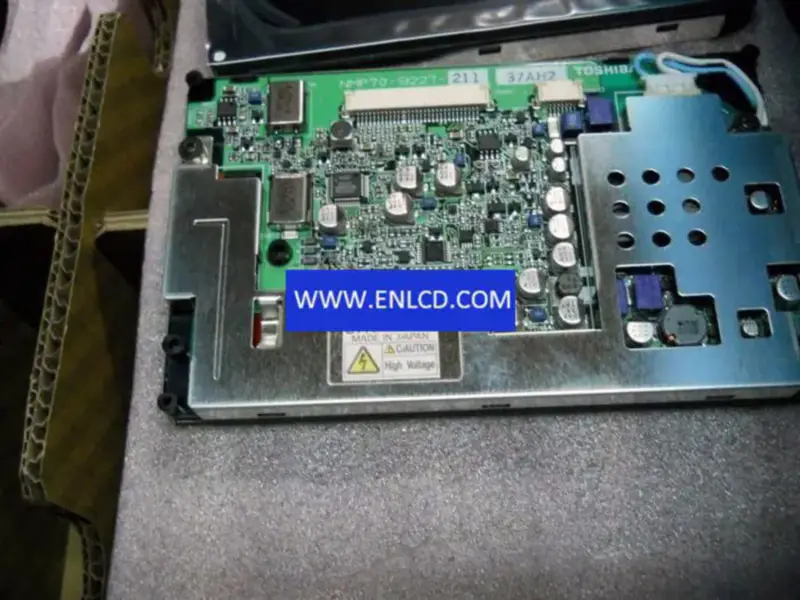

TFD58W22MW Toshiba LCD panel replacement for Automotive Display

Brand：TOSHIBA
Model：TFD58W22MW1 Compatible
Diagonal Size：5.8 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：400(RGB)×234
Configuration： RGB Vertical Stripe
Active Area：127.2(H)×71.8(V) mm
Outline Dim.：145(H)×89(V) mm
Bezel Area：129.6(H)×74.3(V) mm
Treatment：Antiglare， Reflection 3.0% (Max.)
Luminance：350 cd/m2 (Typ.)
Contrast Ratio： 100:1 (Typ.) (TM)
View Direction：12 o'clock
Response Time：-
Viewing Angle：-
Operating Mode：TN， Normally White， Transmissive
Support Color：Full color
Light Source：CCFL[1 pcs]， 10K hours， With Inverter
Weight： 210g (Max.)
Designed For： Automotive Display,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsAnalog RGB + Composite Video (NTSC/PAL)， Connector
Power Supply：9.0V (Typ.)(VCC)
Environment： Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -40 ~ 85 °C：：
