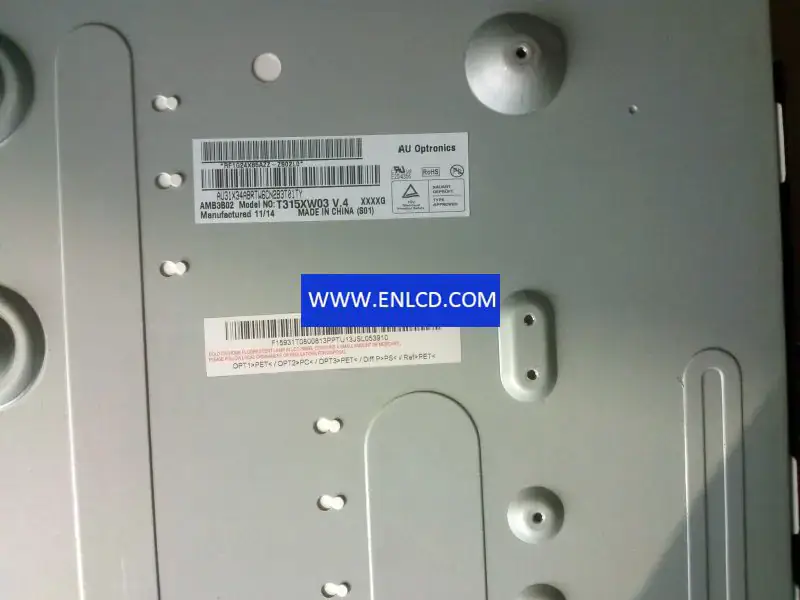

T315XW03 V4 AUO LCD panel replacement for TV Sets

Brand：AUO
Model：T315XW03 V4
Diagonal Size：31.5 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366×768(RGB)[WXGA]
Configuration： RGB Horizontal Stripe
Active Area：697.685(H)×392.256(V) mm
Outline Dim.：760(H)×450(V)×46(D) mm
Bezel Area：703.6(H)×398.3(V) mm
Treatment：Antiglare (Haze 11%), Hard coating (3H)
Luminance：420 cd/m2 (Typ.)
Contrast Ratio： 3000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：6.5 (Typ.)(G to G)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：VA, Normally Black, Transmissive
Support Color：16.7M 72%(CIE1931)
Light Source：CCFL[4 pcs], 50K hours, W/O Driver
Weight： 5.00Kgs (Typ.)
Designed For： TV Sets,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：12.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C：：
