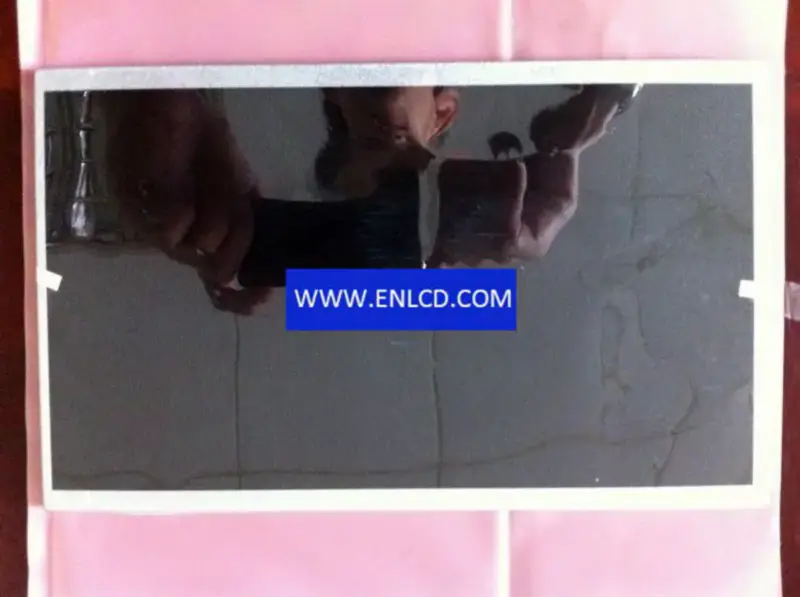

SVA101WV1(01TA)(A) SVA-NEC LCD panel replacement for Netbook PC

Panel Brand：SVA-NEC
Panel Model：SVA101WV1(01TA)(A)
Panel Size：10.0 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1024(RGB)×576 , WSVGA
Pixel Format：RGB Vertical Stripe
Display Area：221.184(W)×124.416(H) mm
Bezel Opening：226.34(W)×128.1(H) mm
Outline Size：235(W)×143(H)×5.2(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：8 (Typ.)(Tr+Td)
Display Colors：262K 45%(CIE1931)
Lamp Type：WLED, 10K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： –
Application： Netbook PC,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
