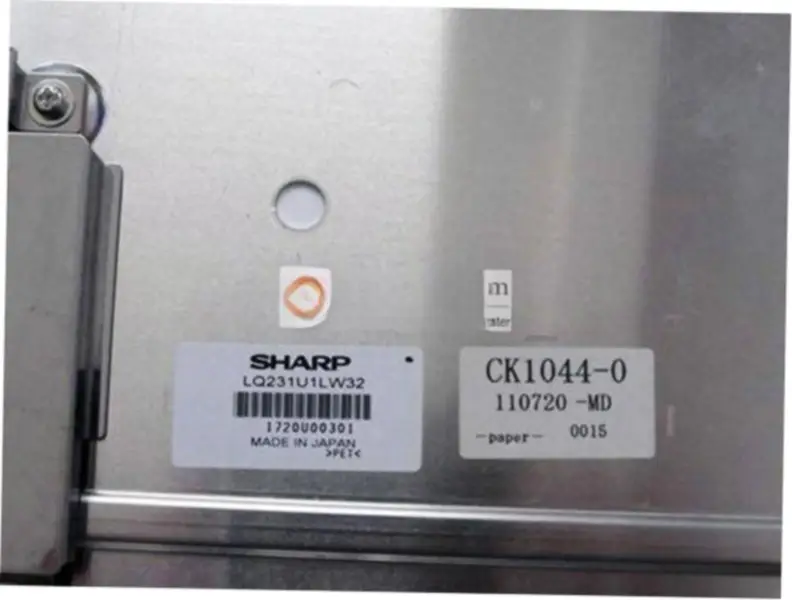

Sharp LQ231U1LW32 LCD

Specification

Model P/N:LQ231U1LW32
Brand:Sharp
Diagonal Size:23.1"
Resolution:1600(RGB)×1200, UXGA 86PPI
Brightness:500 cd/m² (Typ.)
Contrast Ratio:600:1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Min.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:470.4(W)×352.8(H) mm
Bezel Opening:476.4(W)×358.8(H) mm
Response Time:12 (Typ.)(Tr+Td), 8 (Typ.)(G to G)
Outline Size:530(W)×431.5(H) ×24.9(D) mm
Surface:Antiglare (Haze 40%), Hard coating (2H)
Best View on:Symmetry
Display Colors:16.7M 62% NTSC
Lamp Type:WLED , 50K hours , With LED Driver
Frequency:-
Touch Screen:Without
Panel Weight:4.50Kgs (Max.)
Application:Industrial
Signal Interface:OpenLDI , 31 pins Connector
Input Voltage:5.0V (Typ.)
