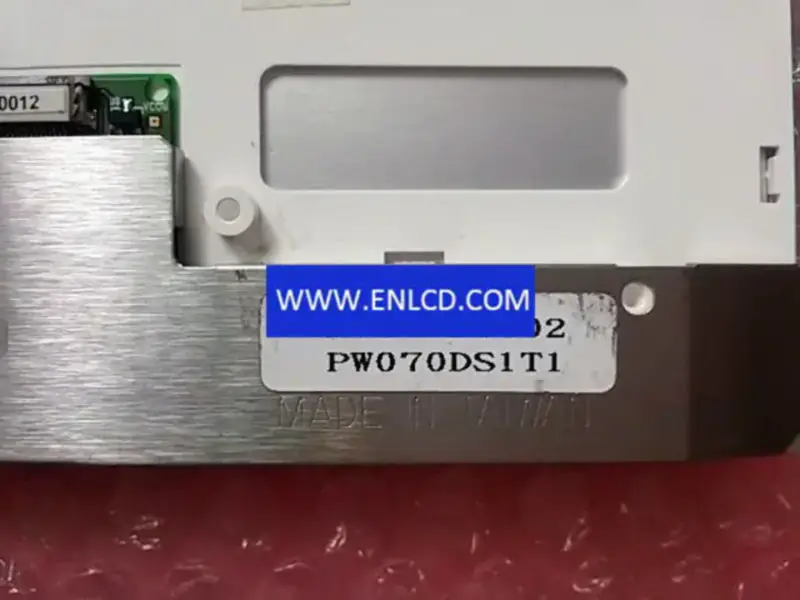

PW070DS1T1 E Ink LCD panel replacement

Brand：PVI
Model：PW070DS1T13 Compatible
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：480(RGB)×234
Configuration：RGB Vertical Stripe
Active Area：154.08(H)×87.05(V) mm
Outline Dim.：166.9(H)×101.8(V) mm
Bezel Area：157.9(H)×91.0(V) mm
Treatment：Antiglare, Hard coating
Luminance：350 cd/m2 (Typ.)
Contrast Ratio：150:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：30/50 (Max.)(Tr/Td)
Viewing Angle：55/55/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：
Light Source：CCFL[1 pcs], 10K hours, W/O Driver
Weight：200g (Typ.)
Designed For： Video Door Phone, Digital Photo Frame, Portable DVD Player,
Frame Rate：-
Touch Panel：Without
Interface Type： 30 pinsAnalog RGB + Composite Video (NTSC/PAL), Connector
Power Supply：3.3/5.0/17/-12V (Typ.)(VCC/VDD/VGON/VGOFF)
Environment：Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C
