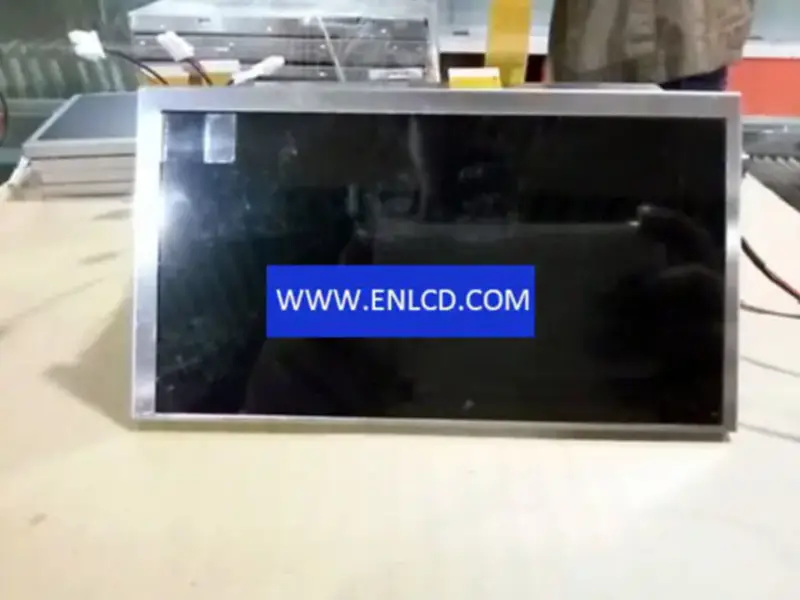

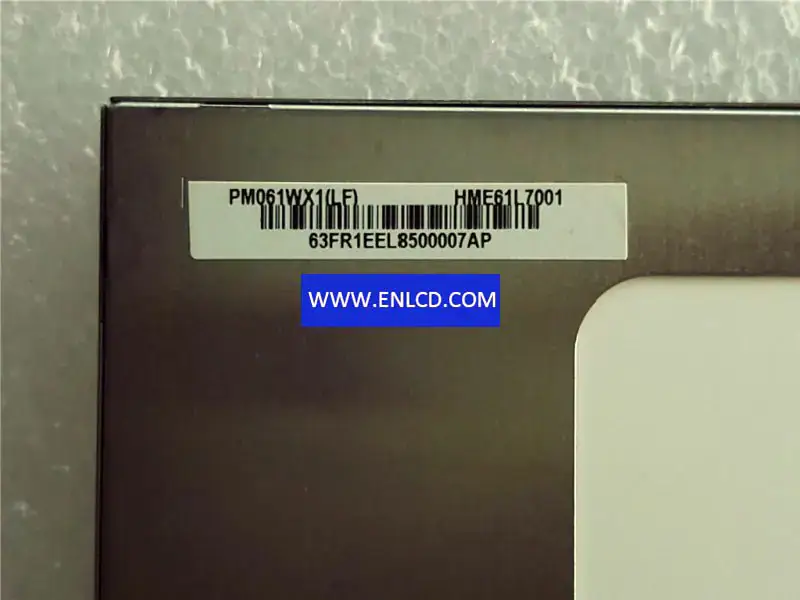

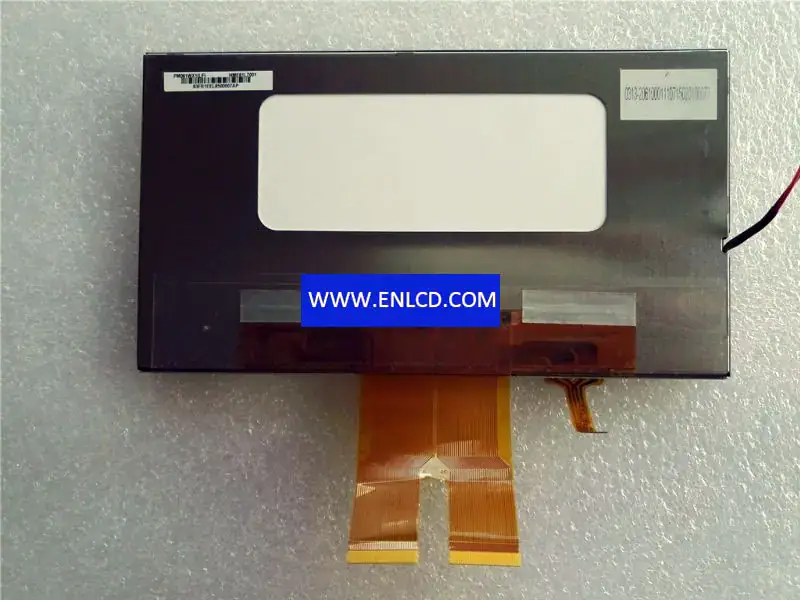

PM061WX1 E Ink LCD panel replacement for Touchscreen

Manufacturer：PVI
Model Name：PM061WX1
Screen Size：6.1 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：800(RGB)×480 (WVGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：136.2 × 72 (H×V)
Outline(mm)： 149 × 82.9 (H×V×D)
Bezel Area(mm)：139.2 × 75.0 (H×V)
Treatment：Antiglare
Luminance：500 cd/m2 (Typ.)
Contrast Ratio：400 : 1 (Typ.) (TM)
Viewing Angle：75/75/50/70 (Typ.)(CR≥10)
Response：10/15 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K
Backlight：3S10PWLED, 50K hours, No Driver
Mass： 120±10g
Used for： Automotive Display,
Refresh Rate：-
Touchscreen：Without
Signal Type： TTL (1 ch, 6-bit), FPC , 60 pins
Voltage Supply：3.3/3.3/9.5/17.0/-8.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE)
Max. Ratings： Storage Temp.: -40 ~ 95 °COperating Temp.: -30 ~ 85 °C
