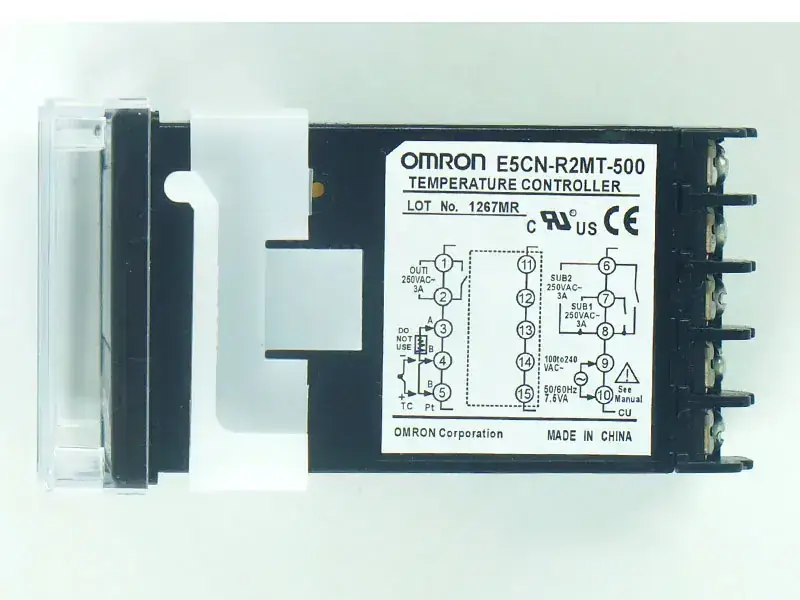

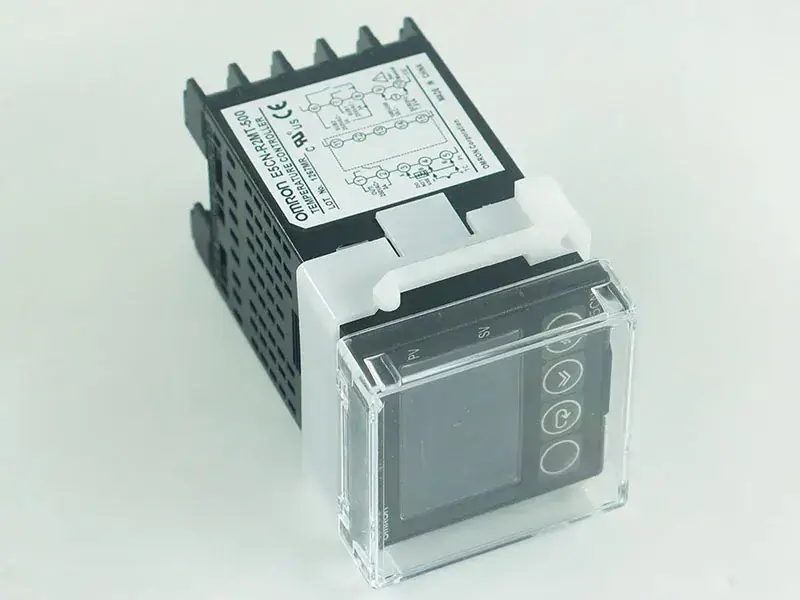

OMRON E5CN-R2MT-500 PLC Module

Name: OMRON E5CN-R2MT-500 PLC Module
SKU: ENLCD0003005
Price: 94 USD
Availability: InStock

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Quantity:

Product Details

Specification

Manufacturer	OMRON
Type of module	regulator
Kind of temperature sensor	contact free, JPt100, Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple R, thermocouple S, thermocouple T, thermocouple U
Controlled parameter	temperature
Kind of output 1	SPST-NO
Kind of output 2	SPST-NO
Regulation for output 1	2PID, AUTOTUNING, ON-OFF, SELFTUNING
Mounting	on panel
Output 1 electrical parameters	250V AC / 3A
Output 2 electrical parameters	250V AC / 3A
Controlled parameter range	-19999…32400
Operating temperature	-10…55°C
The programming method	foil keypad
Body dimensions	48x48x78mm
Mounting hole diameter	46x46mm
IP rating	IP66 (from the front)
Kind of display used	colour, LCD
Display parameters	5 digits
Display height 1	11mm
Display 2 height	6.5mm
Manufacturer series	E5CN
