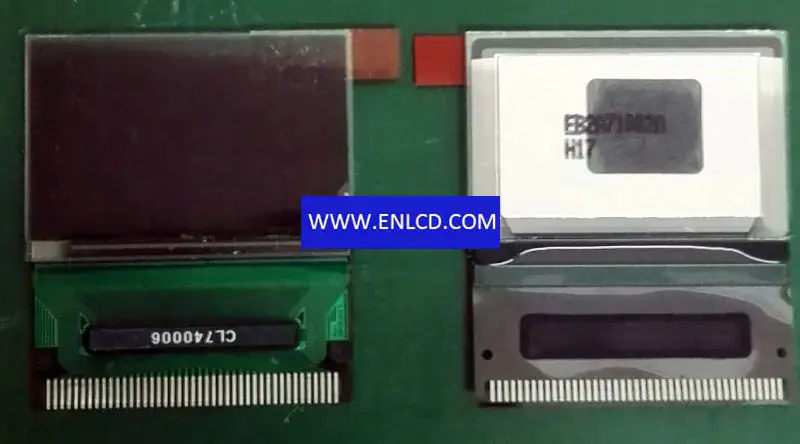

NVK-080SC002T-S-0200 Neoview Kolon LCD panel

Manufacturer：Neoview Kolon
Model Name：NVK-080SC002T-S-0200
Screen Size：1.2 inch
Screen Type：OLED ,PM-OLED
Pixel Number：128(RGB)×80
Arrangement：RGB Vertical Stripe
Active Area(mm)： 25.322 × 15.82 (H×V)
Outline(mm)：32.4 × 22.6× 1.73 (H×V×D)
Bezel Area(mm)： 29.5 × 18.1 (H×V)
Treatment： Antiglare
Luminance：55 cd/m2 (Typ.)
Contrast Ratio：-
Viewing Angle： –
Response： –
Good View at： Symmetry
Work Mode： –
Color Depth：262K 59%(CIE1931)
Backlight：self, 5K hours
Mass： 3.30g (Max.)
Used for： MP3 Player,
Refresh Rate：-
Touchscreen：Without
Driver IC list：Built-inCOFLDS517
Signal Type：8-bit 8080 parallel, FPC, 31 pins
Voltage Supply：2.8/15.0V (Typ.)(VDD/VCC)
Max. Ratings：Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 60 °C
