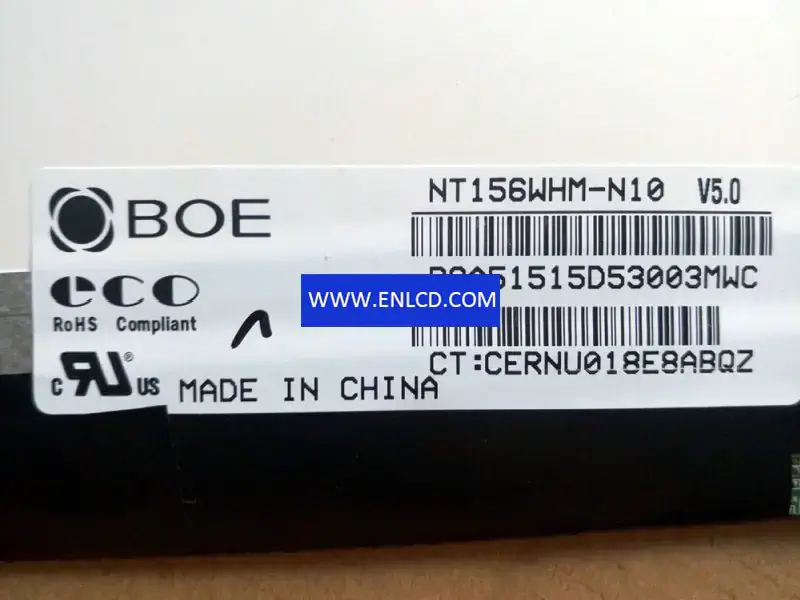

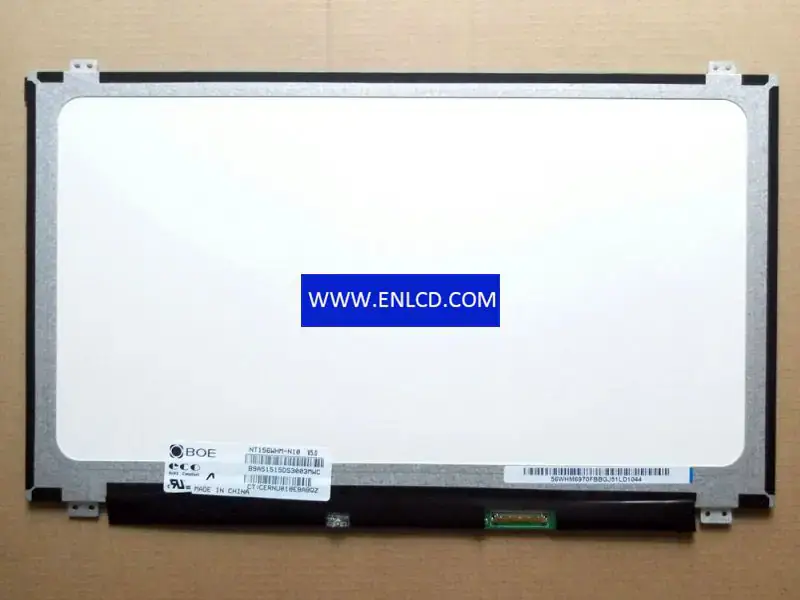

NT156WHM-N10 BOE LCD panel replacement for Laptop

Brand：BOE
Model：NT156WHM-N105 Compatible
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：344.232(H)×193.536(V) mm
Outline Dim.：359.5(H)×223.8(V)×3.8(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：6 o'clock
Response Time：12 (Typ.)(Tr+Td)
Viewing Angle：45/45/20/40 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED[9S4P], 15K hours, With LED Driver
Form Style：Flat (PCBA Flat, Depth 3.4~4.0mm)
Designed For： Laptop,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
