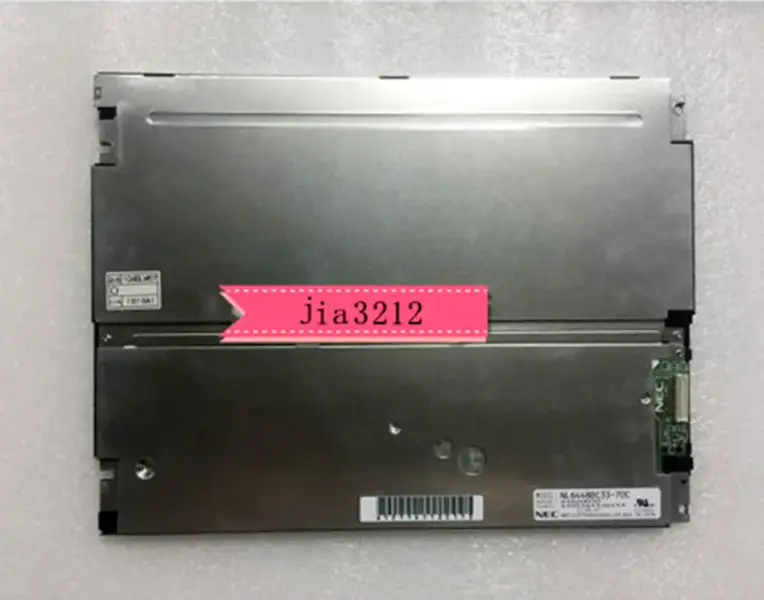

NL6448BC33-70C NLT LCD panel replacement for Industrial Application

Panel Brand：NEC
Panel Size：10.4 inch
Resolution：640(RGB)×480 , VGA
Display Area：211.2(W)×158.4(H) mm
Outline Size：243(W)×185.1(H)×11(D) mm
Brightness：900 cd/m2 (Typ.)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Best View on：-
Display Colors：262K40%(CIE1931)
Frequency： 60Hz
Weight：475/500g (Typ./Max.)
Panel Model：NL6448BC33-70C
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：215.4(W)×161.8(H) mm
Surface：Clear, Hard coating (2H), Antireflection
Contrast Ratio：900:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：3/15 (Typ.)(Tr/Td)
Lamp Type： 4 strings WLED , 70K hours , Without Driver
Touch Screen：Without
Application： Industrial Application,
Signal Interface： CMOS (1 ch, 6-bit), 31 pins , Connector
Input Voltage： 3.3/5.0V (Typ.)
Environment： Operating Temp.: -30 ~ 80 °C ;Storage Temp.: -30 ~ 80 °C; Vibration Level: 2.0G (19.6 m/s2)
