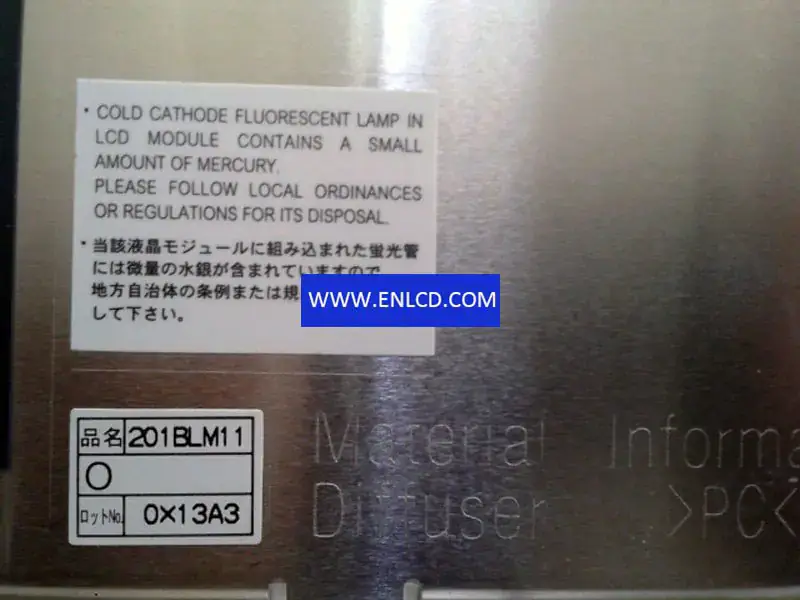

NL256204AM15-02A NLT LCD panel replacement

Manufacturer：NEC
Model Name：NL256204AM15-02A
Screen Size：20.1 inch
Screen Type：LCM，a-Si TFT-LCD
Pixel Number：2560(LCR)×2048 (QSXGA)
Arrangement：LCR Vertical Stripe
Active Area(mm)：399.36 × 319.49 (H×V)
Outline(mm)： 423.4 × 343.5× 45.5 (H×V×D)
Bezel Area(mm)：-
Treatment：Antiglare， Hard coating (3H)
Luminance：850 cd/m2 (Typ.)
Contrast Ratio：600 : 1 (Typ.) (TM)
Viewing Angle：88/88/88/88 (Typ.)(CR≥10)
Response：15/15 (Typ.)(Tr/Td) ms
Good View at：Symmetry
Work Mode：SA-SFT， Normally Black， Transmissive
Color Depth：Grayscale
Backlight：12 pcsCCFL， With Inverter
Mass： 2.44Kgs (Typ.)
Used for： Desktop Monitor, Medical Imaging,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (4 ch， 8-bit)
Voltage Supply：12.0V (Typ.)
Max. Ratings：： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 55 °C
