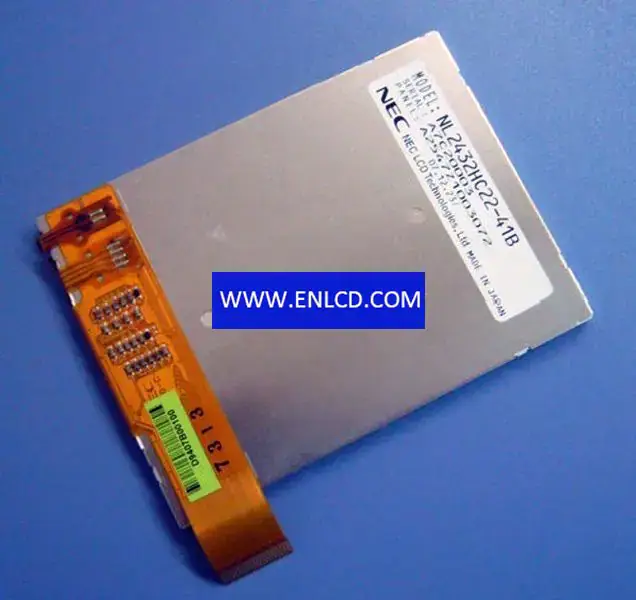

NL2432HC22-41B NLT LCD panel replacement for Handheld & PDA

Brand：NEC
Model：NL2432HC22-41B
Diagonal Size：3.5 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：240(RGB)×320[QVGA]
Configuration：RGB Vertical Stripe
Active Area：53.64(H)×71.52(V) mm
Outline Dim.：63.5(H)×85(V)×5.7(D) mm
Bezel Area：57.64(H)×76.52(V) mm
Treatment：Clear, Hard coating (3H)
Luminance：200 cd/m2 (Typ.)
Contrast Ratio：150:1 (Typ.) (TM) 15:1 (Typ.) (RF)
View Direction：6 o'clock
Response Time：7/23 (Typ.)(Tr/Td)
Viewing Angle：30/30/30/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transflective
Support Color：262K 40%(CIE1931)
Light Source：WLED[6S1P], W/O Driver
Weight： 43.0/45.0g (Typ./Max.)
Designed For： Handheld & PDA,
Frame Rate：60Hz
Touch Panel：Embeded (4-wire Resistive)
Interface Type： 45 pinsCMOS (1 ch, 6-bit) + SPI, FPC
Power Supply：3.0V (Typ.)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 m/s2)
