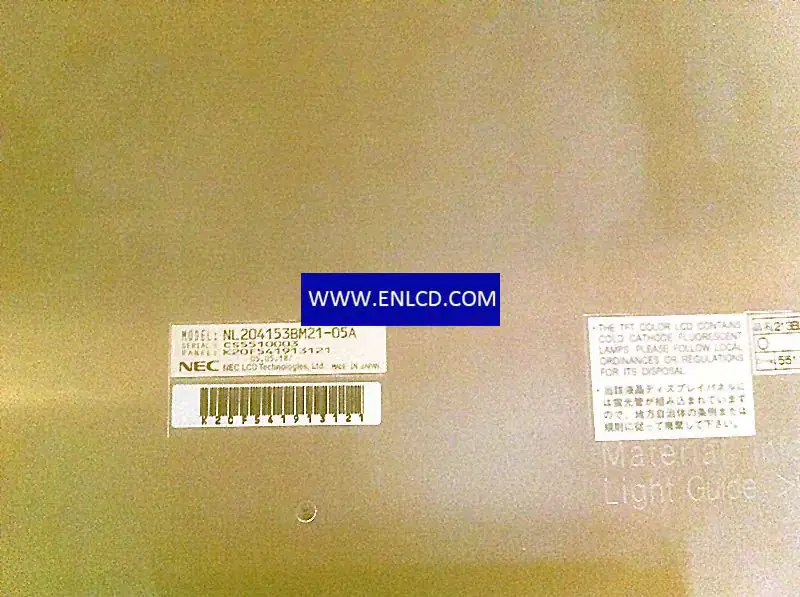

NL204153BM21-05A NLT LCD panel replacement for Medical Imaging

Brand：NEC
Model：NL204153BM21-05A
Diagonal Size：21.3 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：2048(LCR)×1536[QXGA]
Configuration： LCR Vertical Stripe
Active Area：433.152(H)×324.864(V) mm
Outline Dim.：-
View Direction：Symmetry
Response Time：-
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：SA-SFT， Normally Black， Transmissive
Support Color：Grayscale
Light Source：CCFL[6 pcs]， W/O Driver
Weight： –
Designed For： Medical Imaging,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： LVDS (4 ch， 8-bit)， Connector：：
