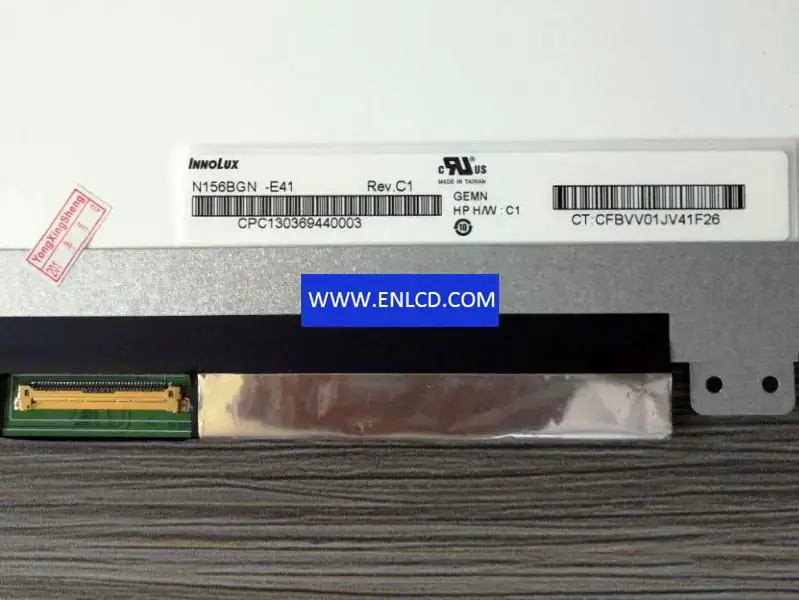

N156BGN-E41 Innolux LCD panel replacement

Brand：Innolux
Diagonal Size：15.6 inch
Pixel Format：1366(RGB)×768[WXGA]
Active Area：344.232(H)×193.536(V) mm
Bezel Area：-
Luminance：220 cd/m2 (Typ.)
View Direction：6 o’clock
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Support Color：262K 45% (CIE1931)
Form Style：Slim (PCBA Flat, Depth ≤3.2mm)
Frame Rate： 60Hz
Model：N156BGN-E41 (CMN15CC)
Type：a-Si TFT-LCD , LCM
Configuration：RGB Vertical Stripe
Outline Dim.： 359.5(H)×223.8(V)×3.2(D)mm
Treatment：Glare (Haze 0%), Hard coating (3H)
Contrast Ratio： 600:1 (Typ.) (TM)
Response Time：3/7 (Typ.)(Tr/Td)
Operating Mode： TN, Normally White, Transmissive
Light Source： WLED, 15K hours , With LED Driver
Designed For： Laptop,
Touch Panel：Embeded (Projected Capacitive Touch, On-Cell)
Interface Type： 40 pinseDP (2 Lanes), Connector
Power Supply： 3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
