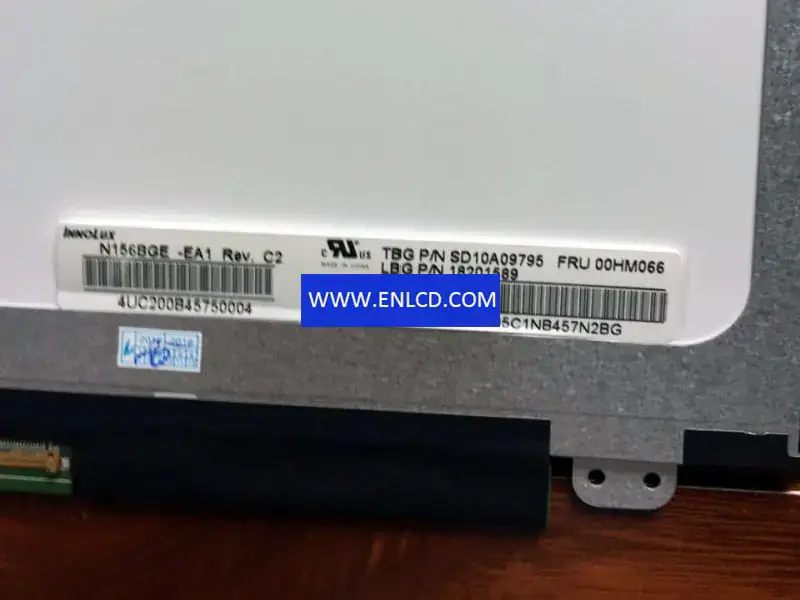

Innolux N156BGE-EA1 LCD panel replacement

Manufacturer：Innolux
Model Name：N156BGE-EA1 (CMN15BD) 8 Compatible
Screen Size：15.6 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1366(RGB)×768 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：344.232 × 193.536 (H×V)
Outline(mm)： 359.5 × 224.3× 3.25 (H×V×D)
Bezel Area(mm)：347.36 × 196.59 (H×V)
Treatment：Antiglare, Hard coating (3H)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Response：3/8 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K 45%(CIE1931)
Backlight：WLED, 12K hours, With LED Driver
Outline Shape： Slim (PCBA Flat, Depth ≤3.2mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： eDP (1 Lane), Connector , 30 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
