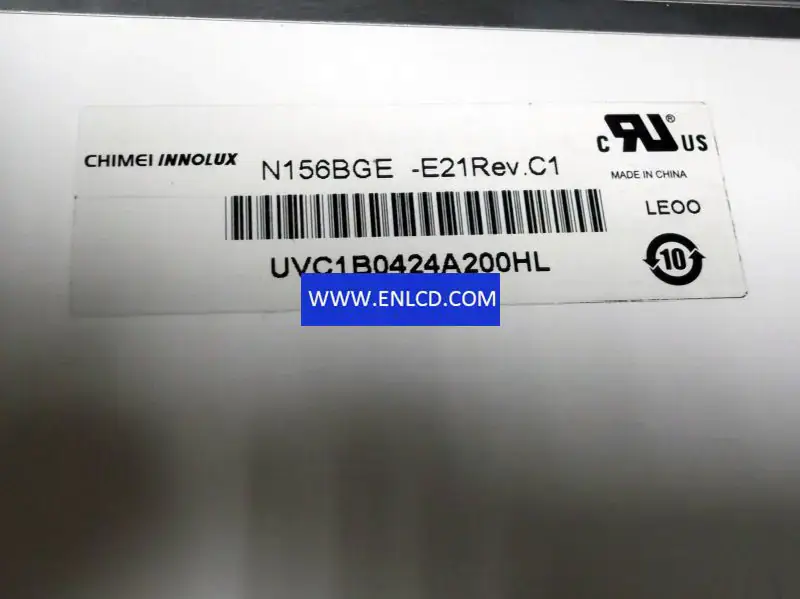

Innolux N156BGE-E21 LCD panel for Laptop

Panel Brand：Chimei Innolux
Panel Model：N156BGE-E21 (CMN15B4) 4 Compatible
Panel Size：15.6 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1366(RGB)×768 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：344.232(W)×193.536(H) mm
Bezel Opening：349.58(W)×198.29(H) mm
Outline Size：359.3(W)×209.5(H)×5.5(D) mm
Surface：Glare (Haze 0%), Hard coating (3H)
Brightness：200 cd/m2 (Typ.)
Contrast Ratio：650:1 (Typ.) (TM)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o’clock
Response Time：3/8 (Typ.)(Tr/Td)
Display Colors：262K 60%(CIE1931)
Lamp Type：WLED, 15K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Shape Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Application： Laptop,
Signal Interface： eDP (1 Lane), 30 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
