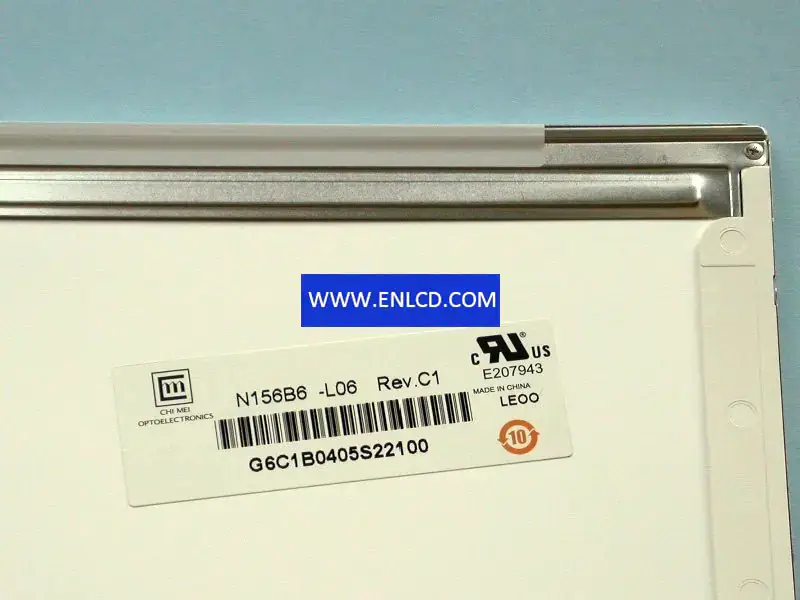

Innolux N156B6-L06 LCD panel

Panel Brand：CMO
Panel Size：15.6 inch
Resolution：1366(RGB)×768 , WXGA
Display Area：344.232(W)×193.536(H) mm
Outline Size：359.3(W)×209.5(H)×5.5(D) mm
Brightness：170 cd/m2 (Typ.)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Best View on：6 o’clock
Display Colors：262K60%(CIE1931)
Frequency： 60Hz
Shape Style：Wedge (PCBA Bent, Depth ≥5.2mm)
Panel Model：N156B6-L06 (CMO1680)61 Compatible
Panel Type：a-Si TFT-LCD , LCM
Pixel Format： RGB Vertical Stripe
Bezel Opening：348.43(W)×197.74(H) mm
Surface：Glare (Haze 0%), Hard coating (3H)
Contrast Ratio：650:1 (Typ.) (TM)
Display Mode： TN, Normally White, Transmissive
Response Time：3/5 (Typ.)(Tr/Td)
Lamp Type：WLED , 15K hours , With LED Driver
Touch Screen：Without
Application： Laptop,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins , Connector
Input Voltage： 3.3V (Typ.)
Environment： Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
