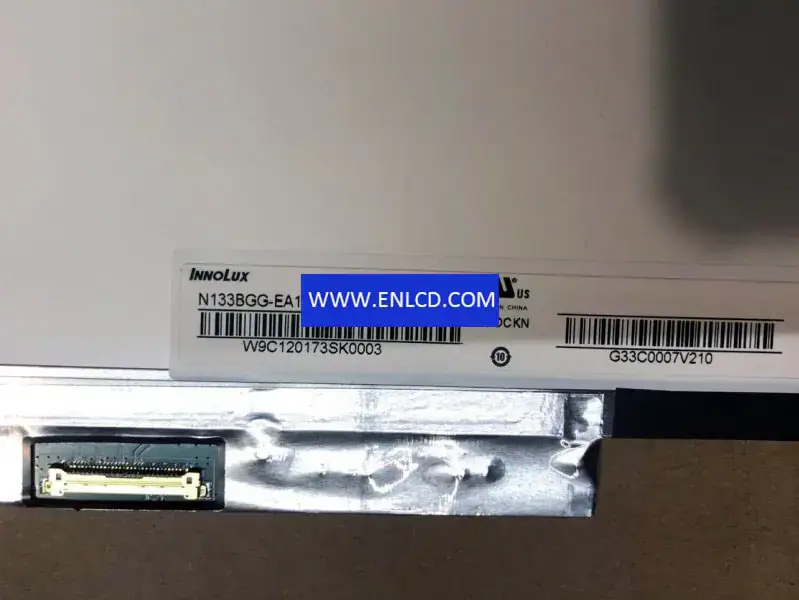

Innolux N133BGG-EA1 LCD panel

Brand：Innolux
Model：N133BGG-EA1 (CMN1364)
Diagonal Size：13.3 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：293.42(H)×164.97(V) mm
Outline Dim.：306.3(H)×177.7(V)×2.85(D) mm
Bezel Area：-
Treatment：Antiglare, Hard coating (3H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：400:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：8/8 (Typ.)(Tr/Td)
Viewing Angle：45/45/20/45 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 45%(CIE1931)
Light Source：WLED, 15K hours, With LED Driver
Form Style：Slim (PCBA Flat, Depth ≤3.2mm)
Designed For： Laptop,
Frame Rate： 60Hz
Touch Panel：Without
Interface Type： 30 pinseDP (1 Lane), Connector
Power Supply：3.3V (Typ.)
Environment：Operating Temperature: 0 ~ 50 °C; Storage Temperature: -20 ~ 60 °C
