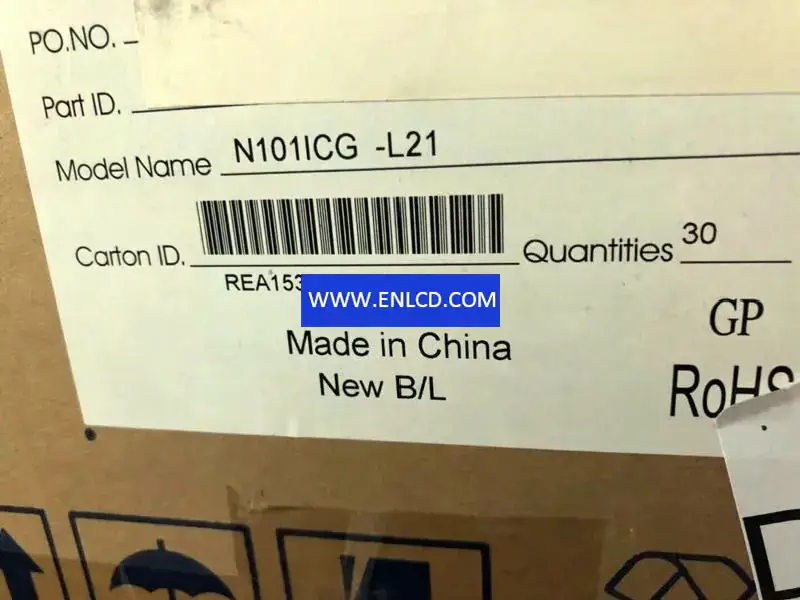

Innolux N101ICG-L21 Rev.B1 LCD panel

Panel Brand：Chimei Innolux
Panel Model：N101ICG-L21 Rev.B1 (CMN1037)
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×800 , WXGA
Pixel Format：RGB Vertical Stripe
Display Area：216.96(W)×135.6(H) mm
Bezel Opening：219.31(W)×138.25(H) mm
Brightness：350 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：AAS, Normally Black, Transmissive
Best View on：Symmetry
Response Time：14/11 (Typ.)(Tr/Td)
Display Colors：262K
Lamp Type：3 stringsWLED, 12K hours, With LED Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 120/135g (Typ./Max.)
Application： Pad & Tablet,
Signal Interface： LVDS (1 ch, 6-bit), 40 pins, Connector
Input Voltage：3.3V (Typ.)
Environment：Operating Temp.: -10 ~ 60 °C ;Storage Temp.: -20 ~ 70 °C
