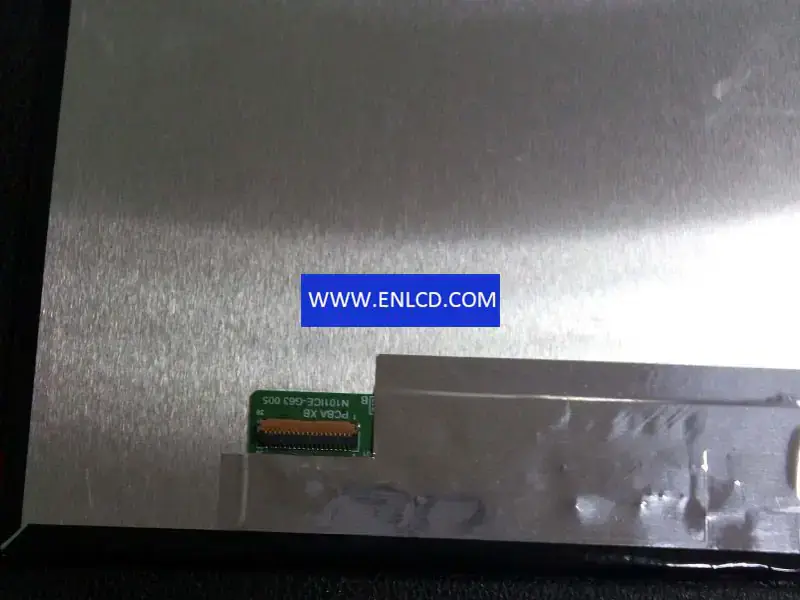

N101ICE-G63 Innolux LCD panel replacement

Brand：Innolux
Model：N101ICE-G63
Diagonal Size：10.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1280(RGB)×800[WXGA]
Configuration：RGB Vertical Stripe
Active Area：216.96(H)×135.6(V) mm
Outline Dim.：228.6(H)×143(V)×4.3(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：350 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：10/15 (Typ.)(Tr/Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：AAS, Normally Black, Transmissive
Support Color：16.7M 60%(CIE1931)
Light Source：WLED[6 strings], 12K hours, W/O Driver
Weight： 130g (Max.)
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 39 pinsMIPI (4 data lanes), Connector
Power Supply：1.8/3.3V (Typ.)(VDDI/VCI)
Environment： Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
