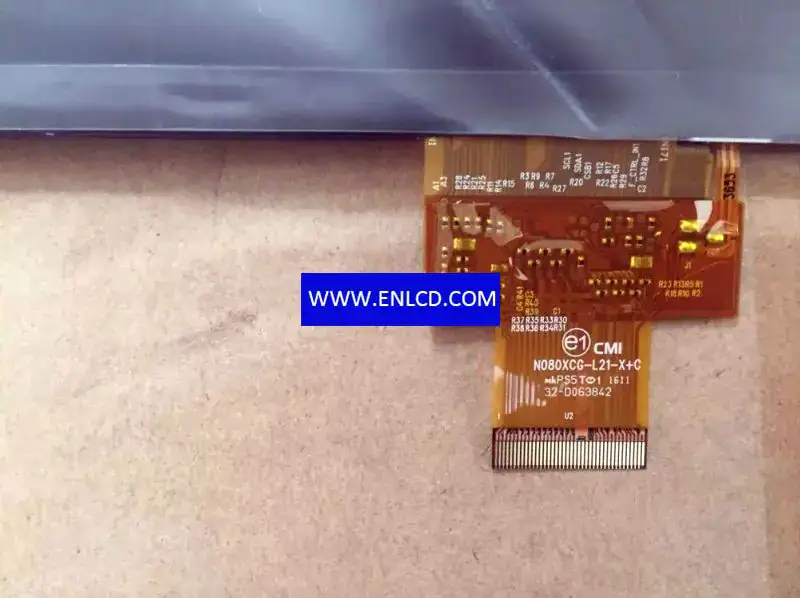

Innolux N080XCG-L21 LCD panel Touch Panel

Brand：Chimei Innolux
Model：N080XCG-L21
Diagonal Size：8.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration：RGB Vertical Stripe
Active Area：162.048(H)×121.536(V) mm
Outline Dim.：183(H)×141(V)×2.9(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%), Hard coating (3H)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：13/12 (Typ.)(Tr/Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：IPS, Normally Black, Transmissive
Support Color：262K/16.7M 50%(CIE1931)
Light Source：WLED, 12K hours, W/O Driver
Weight： 115/130g (Typ./Max.)
Designed For：
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (1 ch, 6/8-bit), FPC
Power Supply：3.3/10.6V (Typ.)(VDD/AVDD)
Environment： Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
