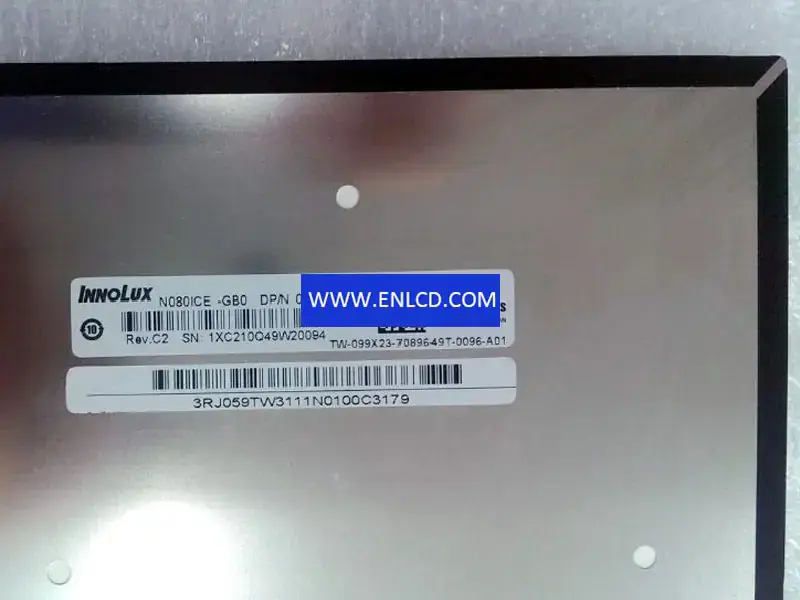

Innolux N080ICE-GB0 Rev.C2 LCD panel

Brand：Innolux
Model：N080ICE-GB0 Rev.C2
Diagonal Size：8.0 inch
Type：a-Si TFT-LCD ， LCM
Pixel Format：800(RGB)×1280[WXGA]
Configuration：RGB Vertical Stripe
Active Area：107.64(H)×172.224(V) mm
Outline Dim.：114.6(H)×184.1(V)×3.85(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%)， Hard coating
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：25 (Typ.)(Tr+Td)
Viewing Angle：80/80/80/80 (Min.)(CR≥10)
Operating Mode：AAS， Normally Black， Transmissive
Support Color：16.7M 60%(CIE1931)
Light Source：WLED[5 strings]， 15K hours， W/O Driver
Weight： –
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： MIPI (4 data lanes)， FPC
Power Supply：1.8/3.3V (Typ.)(VDDI/VCI)
Environment： Operating Temperature: -10 ~ 60 °C ; Storage Temperature: -20 ~ 70 °C
