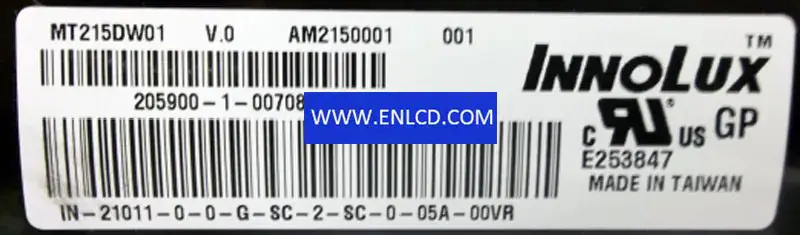

Innolux MT215DW01 V.0 LCD panel for Desktop Monitor

Panel Brand：Innolux
Panel Model：MT215DW01 V.0
Panel Size：21.5 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1920(RGB)×1080 , FHD
Pixel Format：RGB Vertical Stripe
Display Area：476.64(W)×268.11(H) mm
Bezel Opening：479.84(W)×271.31(H) mm
Outline Size：495.6(W)×292.2(H)×16.85(D) mm
Surface：Antiglare, Hard coating (3H)
Brightness：300 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
Viewing Angle：85/85/80/80 (Min.)(CR≥10)
Display Mode：TN, Normally White, Transmissive
Best View on：6 o'clock
Response Time：1.5/3.5 (Typ.)(Tr/Td)
Display Colors：16.7M 72%(CIE1931)
Lamp Type：4 pcsCCFL, 50K hours, Without Driver
Frequency：60Hz
Touch Screen：Without
Panel Weight： 2.20Kgs (Typ.)
Application Desktop Monitor,Signal Interface： LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage：5.0V (Typ.)
Environment：Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -25 ~ 60 °C
