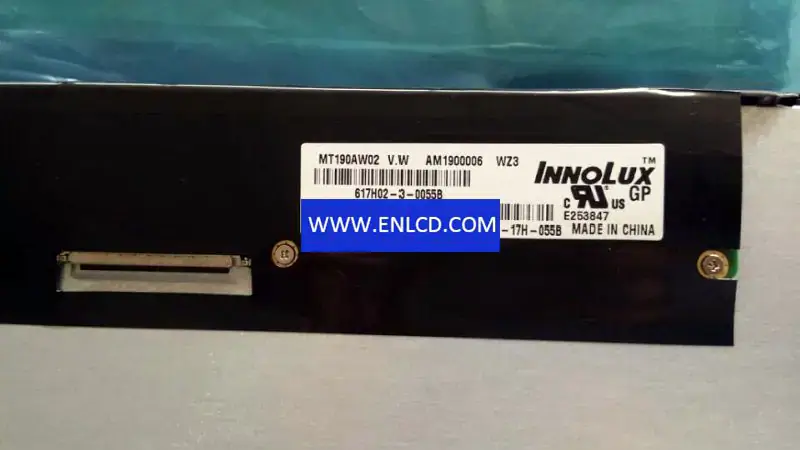

Innolux MT190AW02 V.W LCD panel Touchscreen replacement

Manufacturer：Innolux
Model Name：MT190AW02 V.W
Screen Size：19.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1440(RGB)×900 (WXGA+)
Arrangement：RGB Vertical Stripe
Active Area(mm)：408.24 × 255.15 (H×V)
Outline(mm)： 428 × 278 (H×V×D)
Bezel Area(mm)：412.24 × 259.15 (H×V)
Treatment：Antiglare (Haze 25%), Hard coating (3H)
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：1000 : 1 (Typ.) (TM)
Viewing Angle：85/85/80/80 (Typ.)(CR≥10)
Response：1.5/3.5 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：16.7M 68%(CIE1931)
Backlight：5 stringsWLED, 30K hours, No Driver
Mass： 2.20Kgs (Max.)
Used for： Desktop Monitor,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (2 ch, 8-bit), Connector , 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
