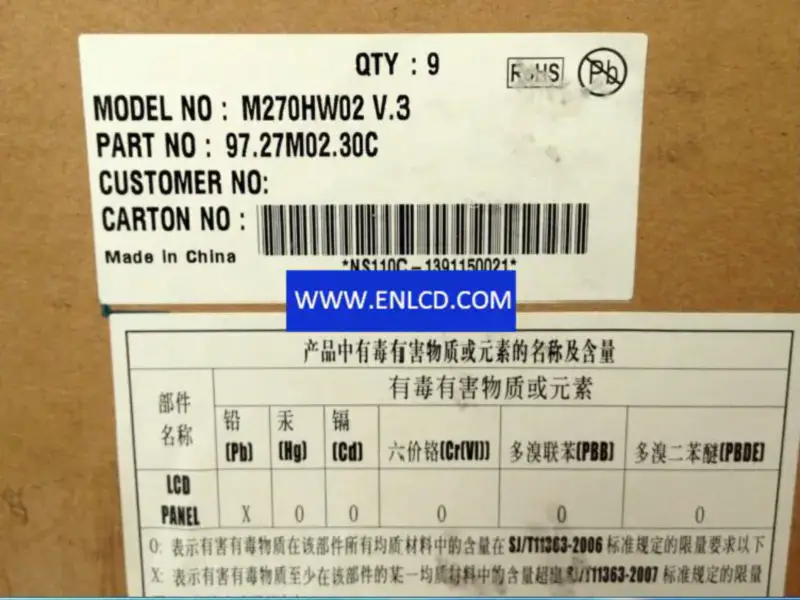

AUO M270HW02 V3 LCD panel

Manufacturer：AUO
Model Name：M270HW02 V3
Screen Size：27.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1920(RGB)×1080 (FHD)
Arrangement：RGB Vertical Stripe
Active Area(mm)：597.6 × 336.15 (H×V)
Outline(mm)： 630 × 368.2× 10.5 (H×V×D)
Bezel Area(mm)：601.6 × 340.15 (H×V)
Treatment：Antiglare, Hard coating (3H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：5000 : 1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Response：7/5 (Typ.)(Tr/Td) ms
Good View at：Symmetry
Work Mode：VA, Normally Black, Transmissive
Color Depth：16.7M 72%(CIE1931)
Backlight：17S4PWLED, 30K hours, No Driver
Mass： 2.35Kgs
Used for： Desktop Monitor,
Refresh Rate：120Hz
Touchscreen：Without
Signal Type： LVDS (2 ch, 8-bit), Connector , 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
