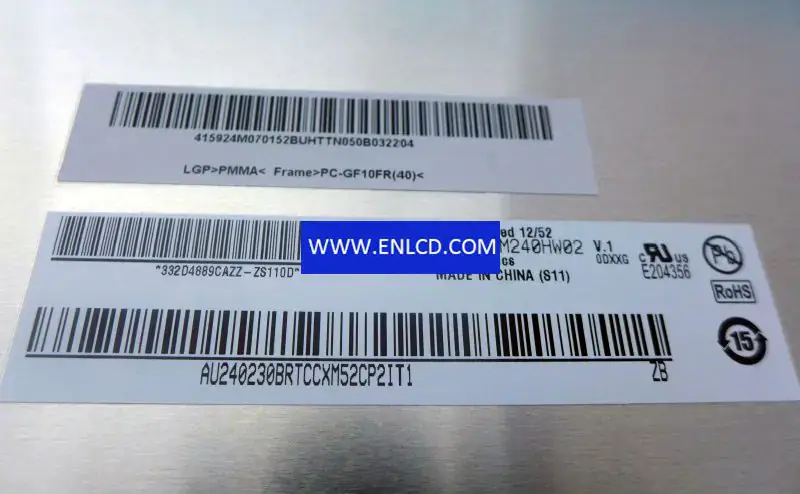

AUO M240HW02 V1 LCD panel

Manufacturer：AUO
Model Name：M240HW02 V1
Screen Size：24.0 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1920(RGB)×1080 (FHD)
Arrangement：RGB Vertical Stripe
Active Area(mm)：531.36 × 298.89 (H×V)
Outline(mm)： 556 × 323.2× 11.5 (H×V×D)
Bezel Area(mm)：535.36 × 302.89 (H×V)
Treatment：Antiglare, Hard coating (3H)
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：3000 : 1 (Typ.) (TM)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Response：16/9 (Typ.)(Tr/Td) ms
Good View at：Symmetry
Work Mode：MVA, Normally Black, Transmissive
Color Depth：16.7M 73%(CIE1931)
Backlight：15S4PWLED, 30K hours, No Driver
Mass： 2.05Kgs (Typ.)
Used for： Desktop Monitor,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (2 ch, 8-bit), Connector , 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
