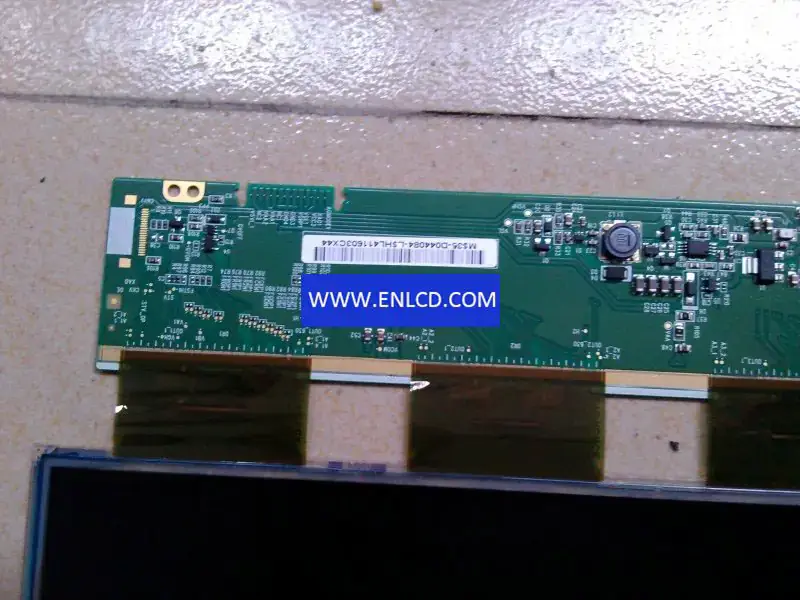

M220Z1-P03 Innolux LCD panel replacement

Manufacturer：CMO
Model Name：M220Z1-P03
Screen Size：22.0 inch
Screen Type：CELL,a-Si TFT-LCD
Pixel Number：1680(RGB)×1050 (WSXGA+)
Arrangement：RGB Vertical Stripe
Active Area(mm)：473.76 × 296.1 (H×V)
Outline(mm)： 485.26 × 307.6× 1.83 (H×V×D)
Bezel Area(mm)：-
Treatment：Antiglare (Haze 25%), Hard coating (3H)
Luminance：0 cd/m2
Contrast Ratio：1000 : 1 (Typ.) (TM)
Viewing Angle：85/85/80/80 (Typ.)(CR≥10)
Response：1.3/3.7 (Typ.)(Tr/Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Glass Thickness：0.70+0.70 mm
Transmissivity：5.8% (Typ.)(with Polarizer)
Color Depth：16.7M
Backlight：No B/L
Mass： 615g (Max.)
Used for： Desktop Monitor,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (2 ch, 8-bit), Connector , 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
