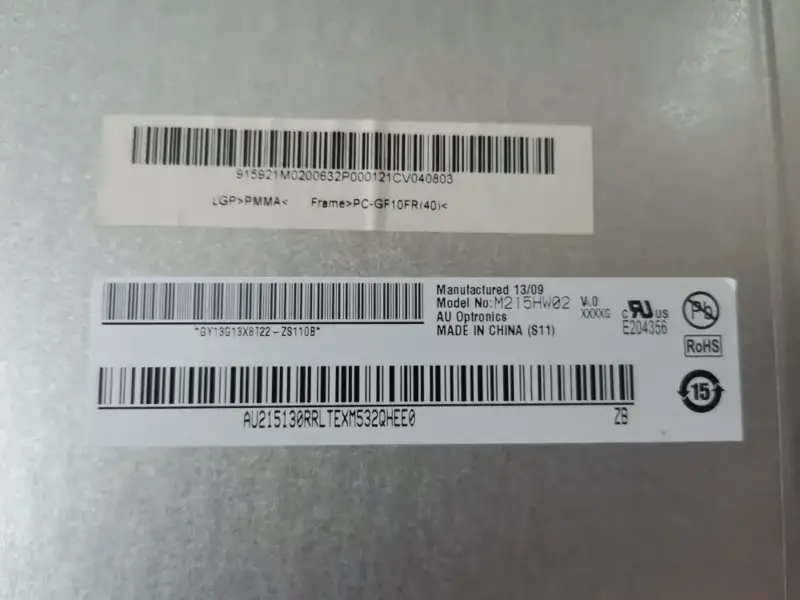

AUO M215HW02 V0 LCD panel Desktop Monitor replacement

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
Brand: AUO
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Quantity:

Panel Brand:AUO
Panel Model:M215HW02 V0
Panel Size:21.5 inch
Panel Type:a-Si TFT-LCD, LCM
Resolution:1920(RGB)×1080 , FHD
Pixel Format:RGB Vertical Stripe
Display Area:476.64(W)×268.11(H) mm
Bezel Opening:479.84(W)×271.31(H) mm
Outline Size:495.6(W)×292.2(H)×10.7(D) mm
Surface:Antiglare, Hard coating (3H)
Brightness:250 cd/m2 (Typ.)
Contrast Ratio:5000:1 (Typ.) (TM)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Display Mode:VA, Normally Black, Transmissive
Best View on:Symmetry
Response Time:10/6 (Typ.)(Tr/Td)
Display Colors:16.7M 72%(CIE1931)
Lamp Type:20S4PWLED, 30K hours, Without Driver
Frequency:60Hz
Touch Screen:Without
Panel Weight: 1.80Kgs (Max.)
Application: Desktop Monitor,
Signal Interface: LVDS (2 ch, 8-bit), 30 pins, Connector
Input Voltage:5.0V (Typ.)
Environment:Operating Temp.: 0 ~ 50 °C ;Storage Temp.: -20 ~ 60 °C
