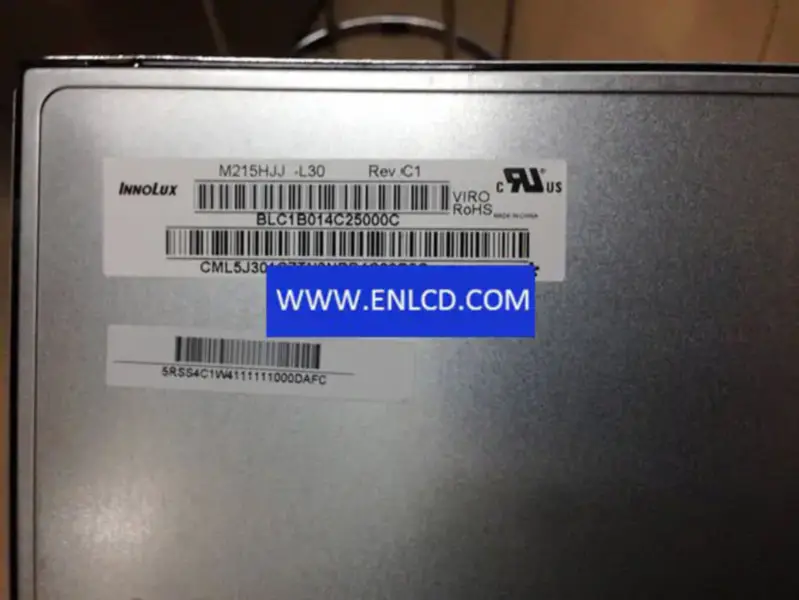

Innolux M215HJJ-L30 Rev.C1 LCD panel

Manufacturer：Innolux
Model Name：M215HJJ-L30 Rev.C1
Screen Size：21.5 inch
Screen Type：LCM ,a-Si TFT-LCD
Pixel Number：1920(RGB)×1080 (FHD)
Arrangement：RGB Vertical Stripe
Active Area(mm)： 476.064 × 267.786 (H×V)
Outline(mm)：495.6 × 292.2× 11.5 (H×V×D)
Bezel Area(mm)： 479.84 × 271.3 (H×V)
Treatment： Antiglare (Haze 25%), Hard coating (3H)
Luminance：250 cd/m2 (Typ.)
Contrast Ratio：3000 : 1 (Typ.) (TM)
Viewing Angle： 89/89/89/89 (Typ.)(CR≥10)
Response： 20/5 (Typ.)(Tr/Td) ms
Good View at： Symmetry
Work Mode： MVA, Normally Black, Transmissive
Color Depth：16.7M 72%(CIE1931)
Backlight：4 stringsWLED, 40K hours, No Driver
Mass： 1.91/2.10Kgs (Typ./Max.)
Used for： Desktop Monitor,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type：LVDS (2 ch, 8-bit), Connector, 30 pins
Voltage Supply：5.0V (Typ.)
Max. Ratings：Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
