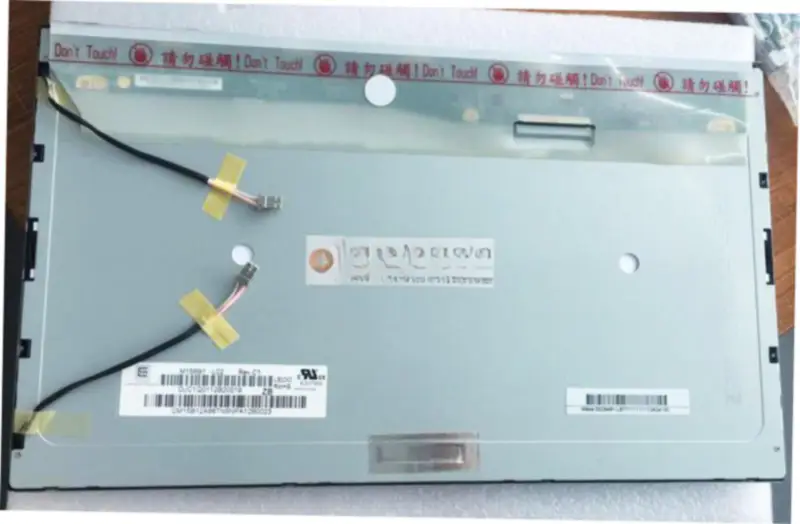

CMO M156B1-L02 LCD

Specification

Model P/N:M156B1-L02 4
Brand:CMO
Diagonal Size:15.6"
Resolution:1366(RGB)×768, WXGA 100PPI
Brightness:250 cd/m² (Typ.)
Contrast Ratio:500:1 (Typ.) (TM)
Viewing Angle:85/85/80/80 (Typ.)(CR≥10)
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:344.232(W)×193.536(H) mm
Bezel Opening:347.5(W)×196.8(H) mm
Response Time:2/6 (Typ.)(Tr/Td)
Outline Size:363.8(W)×215.9(H) ×14.8(D) mm
Surface:Antiglare (Haze 25%), Hard coating (3H)
Best View on:-
Display Colors:16.7M 65% NTSC
Lamp Type:2 pcs CCFL , 50K hours , Without Driver
Frequency:75Hz
Touch Screen:Without
Panel Weight:1.30Kgs (Max.)
Application:Desktop Monitor
Signal Interface:LVDS (1 ch, 8-bit) , 30 pins Connector
Input Voltage:5.0V (Typ.)
