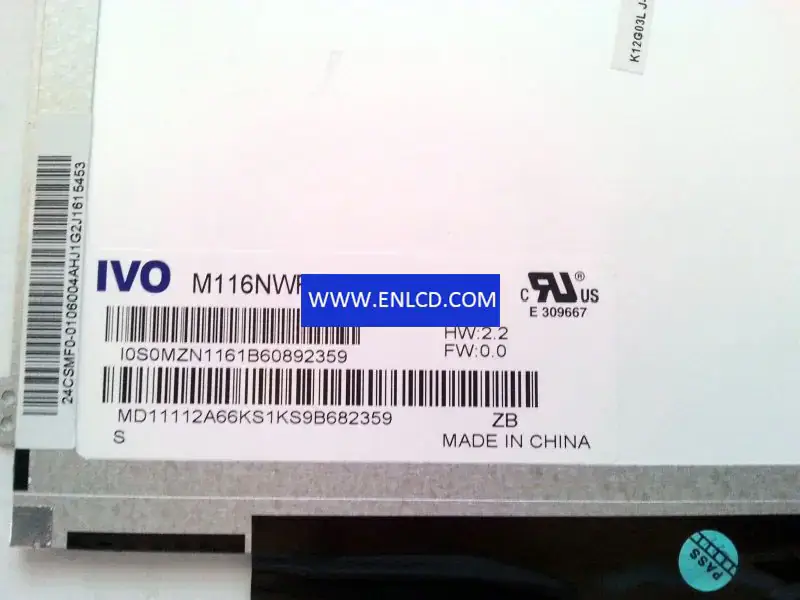

IVO M116NWR1 R1 LCD panel replacement

Manufacturer：IVO
Model Name：M116NWR1 R1 (IVO0489)
Screen Size：11.6 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1366(RGB)×768 (WXGA)
Arrangement：RGB Vertical Stripe
Active Area(mm)：256.125 × 144 (H×V)
Outline(mm)： 278 × 167× 3.7 (H×V×D)
Bezel Area(mm)：259.675 × 147.2 (H×V)
Treatment：Antiglare
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：500 : 1 (Typ.) (TM)
Viewing Angle：75/75/50/60 (Typ.)(CR≥10)
Response：8 (Typ.)(Tr+Td) ms
Good View at：6 o’clock
Work Mode：TN, Normally White, Transmissive
Color Depth：262K 45%(CIE1931)
Backlight：WLED, 10K hours, With LED Driver
Outline Shape： Flat (PCBA Flat, Depth 3.4~4.0mm)
Used for： Laptop,
Refresh Rate：60Hz
Touchscreen：Without
Signal Type： LVDS (1 ch, 6-bit), Connector , 40 pins
Voltage Supply：3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °COperating Temp.: 0 ~ 50 °C
