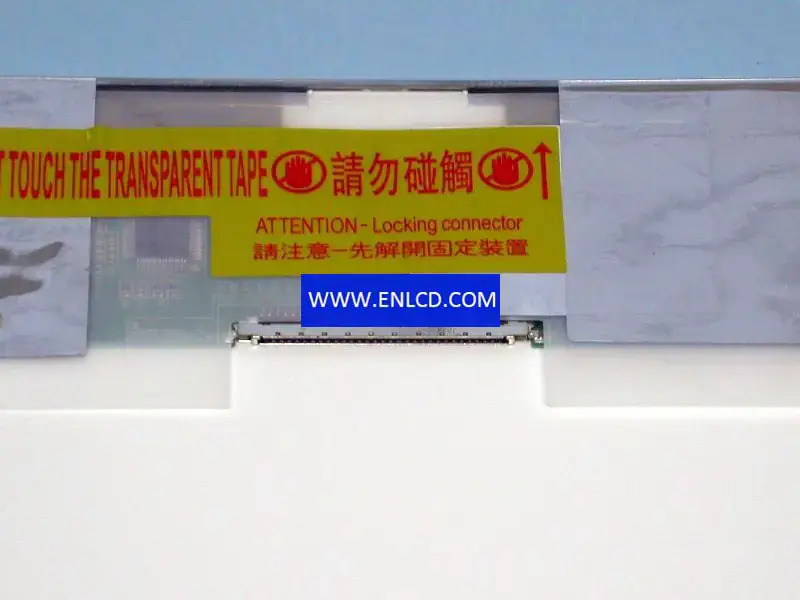

LTN156AT01-V01 Samsung LCD panel replacement

Brand：SAMSUNG
Model：LTN156AT01-V01
Diagonal Size：15.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration： RGB Vertical Stripe
Active Area：344.232(H)×193.536(V) mm
Outline Dim.：-
Bezel Area：-
Treatment：Glare (Haze 0%)
View Direction：-
Response Time：-
Viewing Angle：-
Operating Mode：TN, Normally White, Transmissive
Support Color：262K
Light Source：CCFL[1 pcs], W/O Driver
Form Style： Wedge (PCBA Bent, Depth ≥5.2mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： LVDS (1 ch, 6-bit), Connector
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
