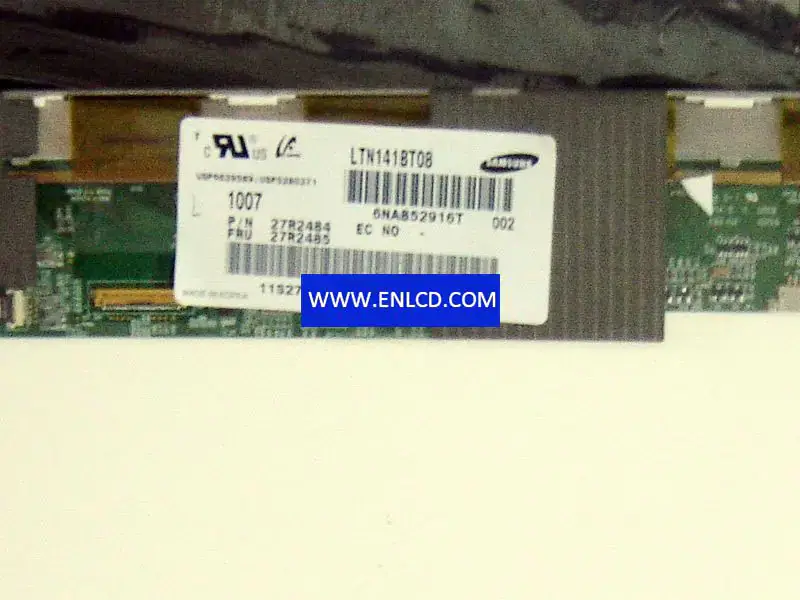

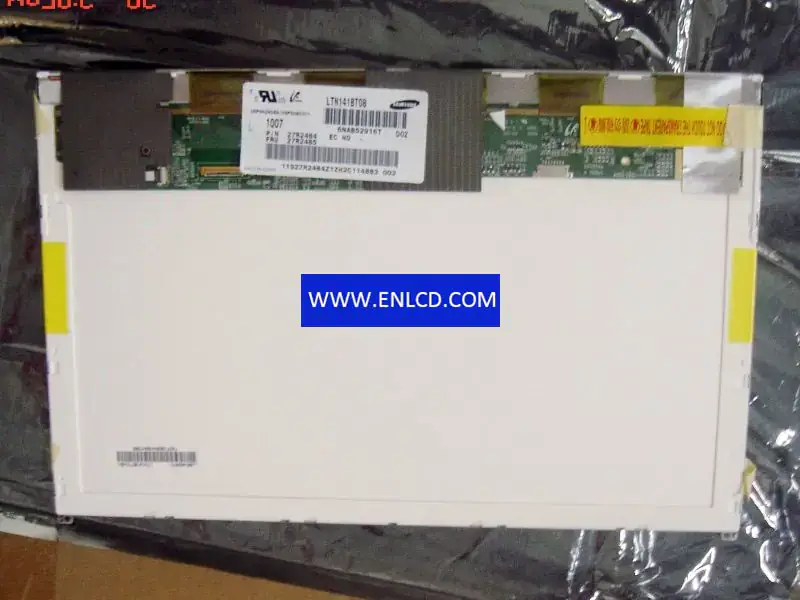

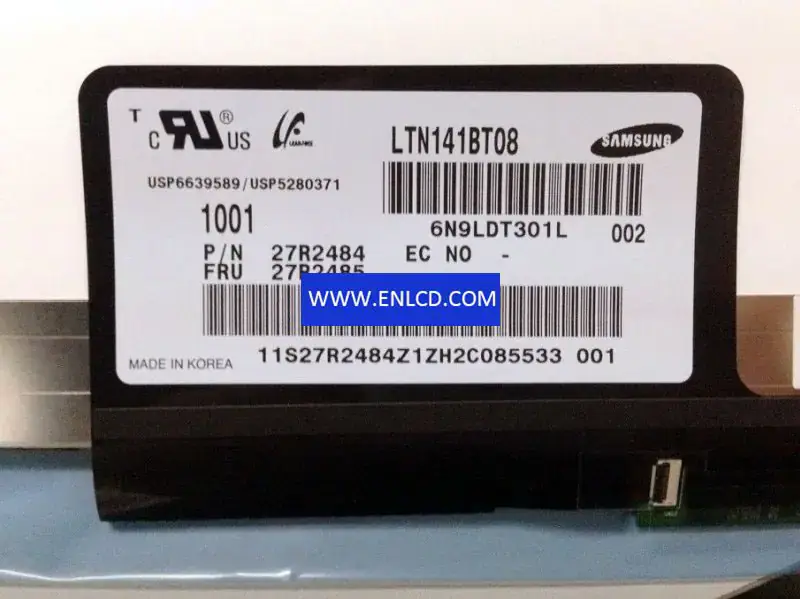

LTN141BT08-002 Samsung LCD panel replacement

Brand：SAMSUNG
Model：LTN141BT08-002 (LEN4036)
Diagonal Size：14.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1440(RGB)×900[WXGA+]
Configuration：RGB Vertical Stripe
Active Area：303.48(H)×189.675(V) mm
Outline Dim.：314.8(H)×203.5(V)×4.05(D) mm
Bezel Area：-
Treatment：Antiglare (Haze 40%), Hard coating (2H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：250:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：45/45/15/35 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K
Light Source：WLED[10S6P], 10K hours, With LED Driver
Form Style： Flat (PCBA Flat, Depth 3.4~4.0mm)
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 40 pinsLVDS (2 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
