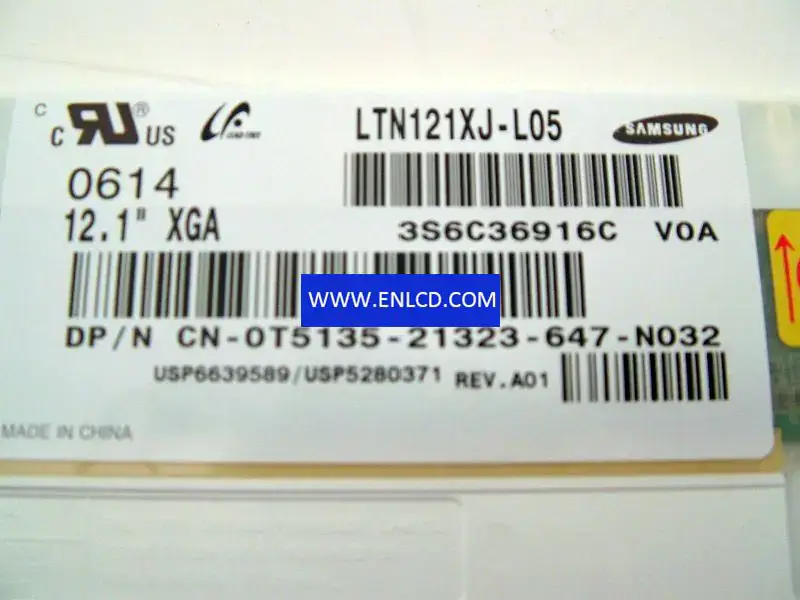

Samsung LTN121XJ-L05 LCD panel

Brand：SAMSUNG
Model：LTN121XJ-L05
Diagonal Size：12.1 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration：RGB Vertical Stripe
Active Area：245.76(H)×184.32(V) mm
Outline Dim.：261(H)×198(V)×5(D) mm
Bezel Area：249.9(H)×188.4(V) mm
Treatment：Antiglare (Haze 40%), Hard coating (2H)
Luminance：220 cd/m2 (Typ.)
Contrast Ratio：300:1 (Typ.) (TM)
View Direction：6 o’clock
Response Time：40 (Typ.)(Tr+Td)
Viewing Angle：50/50/40/45 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K 46%(CIE1931)
Light Source：CCFL[1 pcs], 10K hours, W/O Driver
Form Style： –
Designed For： Laptop,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：3.3V (Typ.)
