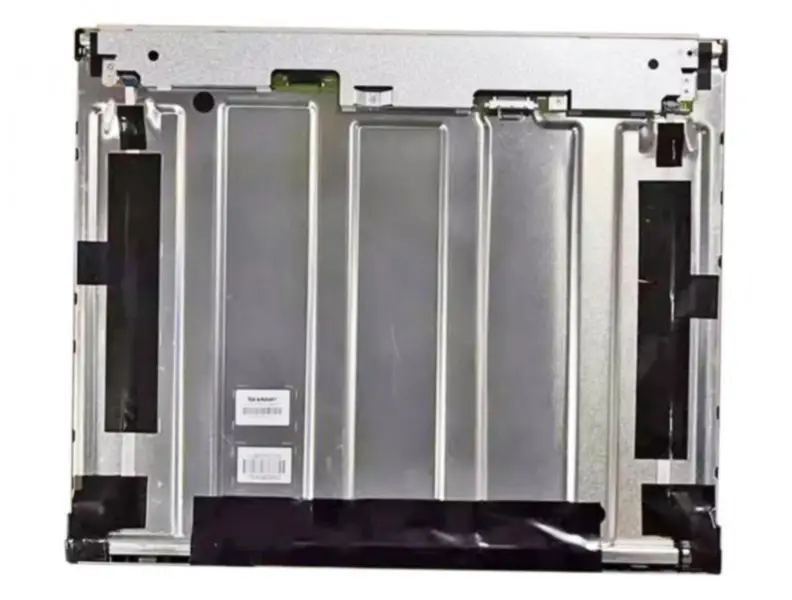

Sharp LQ170E1LW33 LCD
Sharp LQ170E1LW33 LCD
$169.00
Sharp LQ164M1LD4D LCD
Sharp LQ164M1LD4D LCD
$66.66
Sharp LQ170M1LA2E LCD
Sharp LQ170M1LA2E LCD
$35.00

Samsung LTM240CL01 LCD

{{ product.price_format }}
{{ product.origin_price_format }}
Stock:
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

{{ value.name }}

Condition:

Quantity:

Specification

Model P/N:LTM240CL01
Brand:Samsung
Diagonal Size:24.0"
Resolution:1920(RGB)×1200, WUXGA 94PPI
Contrast Ratio:1000 : 1 (Typ.) (TM)
Viewing Angle:89/89/89/89 (Typ.)(CR≥10)
Color Depth:16.7M 100% sRGB
Backlight:14S4P WLED , 30K hours , No Driver
Signal Type:LVDS (2 ch, 8-bit) , 30 pins Connector
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:518.4(W)×324(H) mm
Bezel Opening:522.4(W)×328.0(H) mm
Treatment:Antiglare (Haze 47%), Hard coating (3H)
Luminance:300 cd/m² (Typ.)
Outline(mm):546.4 × 352 × 15 (H×V×D)
Response:12 (Typ.)(Tr+Td) ms
Good View at:Symmetry
Work Mode:PLS, Normally Black, Transmissive
Mass:2.40Kgs (Max.)
Used for:Desktop Monitor
Refresh Rate:80Hz
Touchscreen:Without
Voltage Supply:5.0V (Typ.)
Max Ratings:Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
