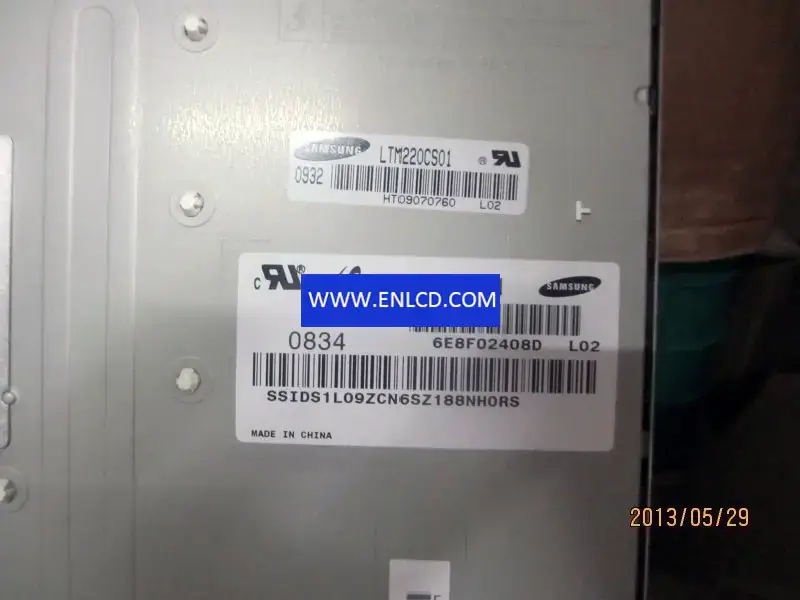

Samsung LTM220CS01 LCD panel replacement

Brand：SAMSUNG
Model：LTM220CS01
Diagonal Size：22.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1920(RGB)×1200[WUXGA]
Configuration：RGB Vertical Stripe
Active Area：473.76(H)×296.1(V) mm
Outline Dim.：497.8(H)×320.1(V) mm
Bezel Area：477.7(H)×300.1(V) mm
Treatment：Antiglare (Haze 44%), Hard coating (3H)
Luminance：300 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：16 (Typ.)(Tr+Td); 8 (Typ.)(G to G)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：S-PVA, Normally Black, Transmissive
Support Color：16.7M 92%(CIE1931)
Light Source：CCFL[6 pcs], 30K hours
Weight： 3.00Kgs (Max.)
Designed For： Desktop Monitor,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (2 ch, 8-bit), Connector
Power Supply：5.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
