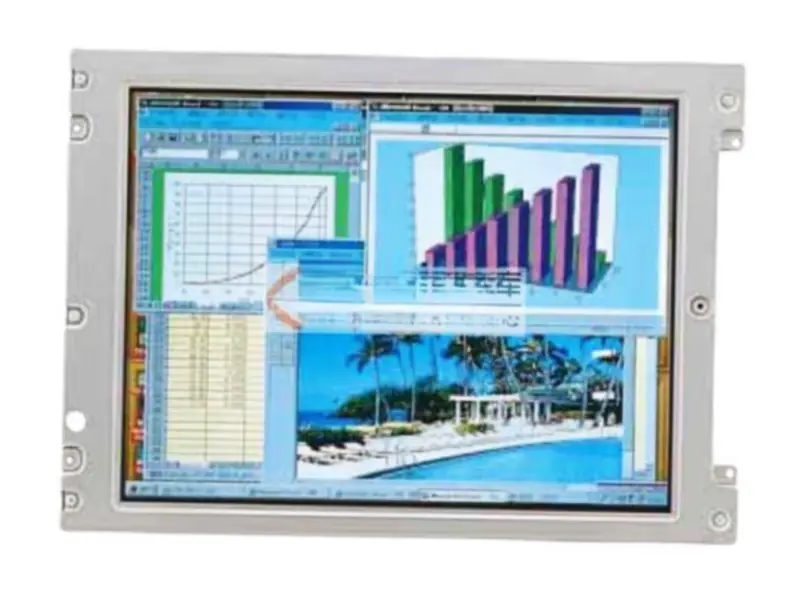

TOSHIBA LTM10C209H LCD

Specification

Model P/N:LTM10C209H 2
Brand:TOSHIBA
Diagonal Size:10.4"
Resolution:640(RGB)×480, VGA 76PPI
Contrast Ratio:250:1 (Typ.) (TM)
Viewing Angle:-
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:211.2(W)×158.4(H) mm
Bezel Opening:216.2(W)×163.4(H) mm
Outline Dim:265(H)×188.8(V) ×12(D) mm
Treatment:-
Luminance:350 cd/m² (Typ.)
View Direction:-
Response Time:50/50 (Max.)(Tr/Td)
Operating Mode:TN, Normally White, Transmissive
Support Color:262K
Light Source:CCFL [2 pcs] , 30K hours , W/O Driver
Weight:605g (Typ.)
Designed For:Industrial
Frame Rate:-
Touch Panel:Without
Interface Type:CMOS (1 ch, 6-bit) , 31 pins Connector
Power Supply:5.0V (Typ.)
