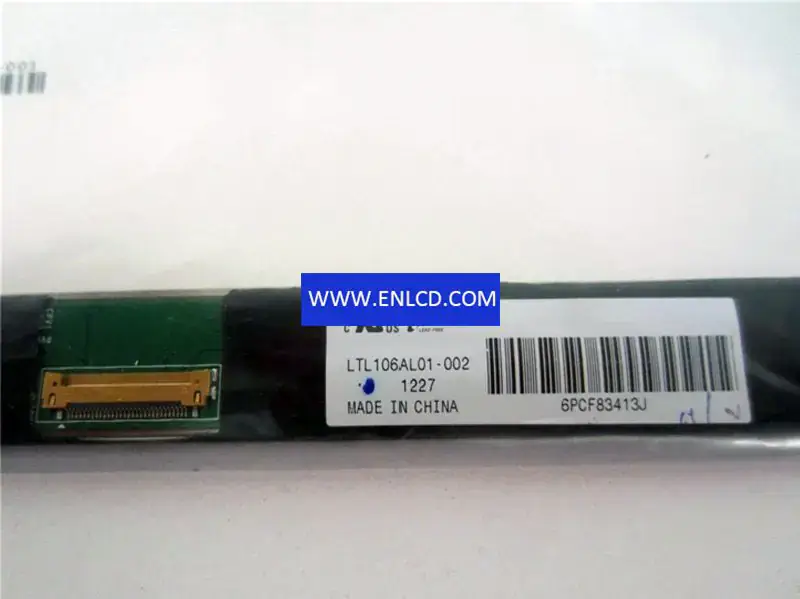

LTL106AL01-002 Samsung LCD panel replacement

Brand：SAMSUNG
Model：LTL106AL01-002
Diagonal Size：10.6 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：234.72(H)×132.03(V) mm
Outline Dim.：246.52(H)×149.02(V)×5.2(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%), Hard coating (2H)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：800:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：PLS, Normally Black, Transmissive
Support Color：16.7M 50%(CIE1931)
Light Source：WLED, 12K hours, With LED Driver
Weight： 193g (Max.)
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
