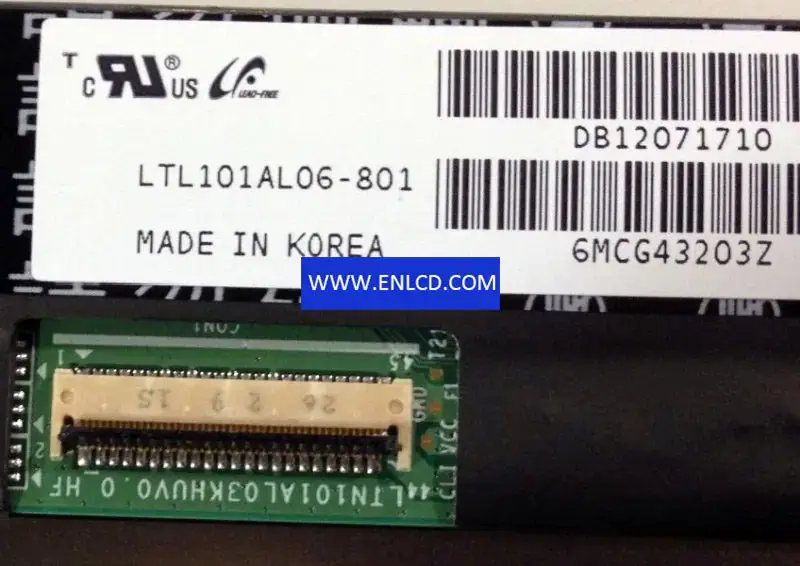

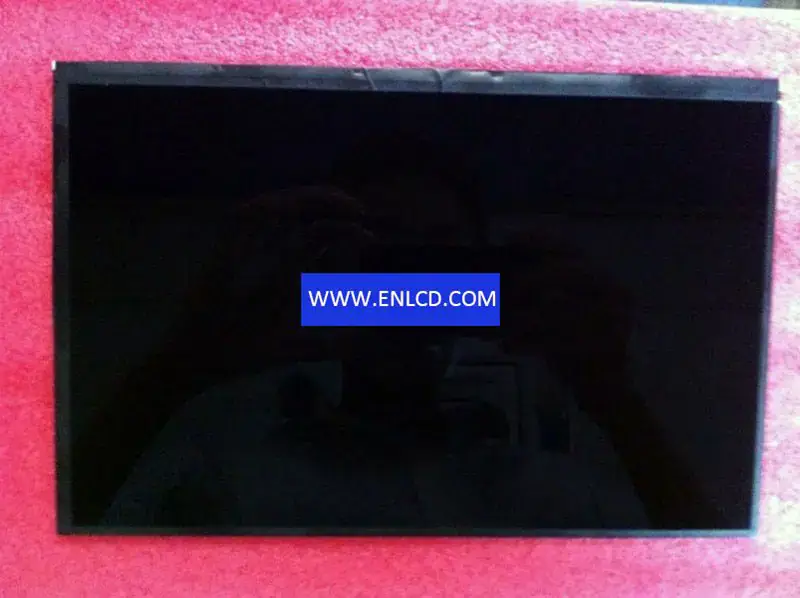

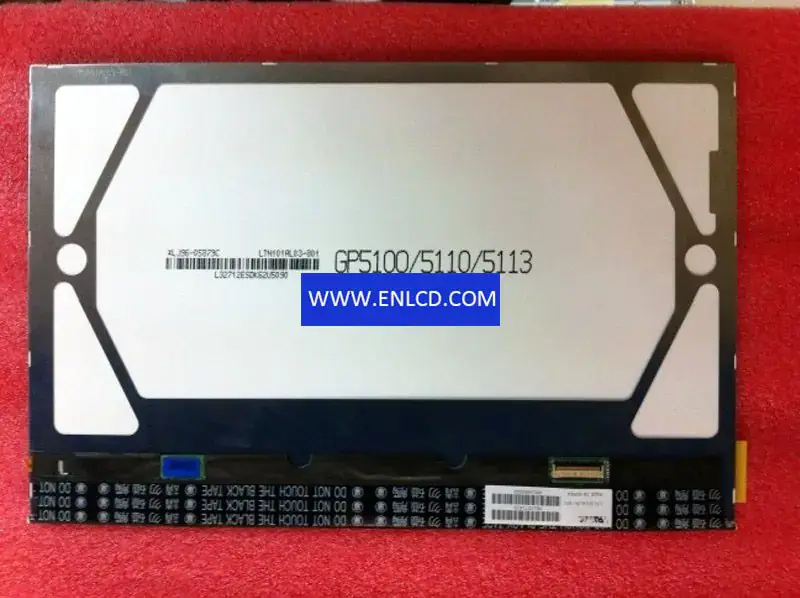

LTL101AL06-801 Samsung LCD panel replacement

Manufacturer：SAMSUNG
Screen Size： 10.1 inch
Pixel Number： 1280(RGB)×800(WXGA)
Active Area(mm)：216.96 × 135.6 (H×V)
Bezel Area(mm)：218.56 × 137.2 (H×V)
Luminance：400 (Typ.)(cd/m2)
Viewing Angle：80/80/80/80 (Typ.)(CR≥10)
Good View at：Symmetry
Color Depth：16.2M 50% (CIE1931)
Mass： 130±10g
Refresh Rate：60Hz
Model Name：LTL101AL06-8015 Compatible
Screen Type：LCM ,a-Si TFT-LCD
Arrangement：RGB Vertical Stripe
Outline(mm)： 228.21 × 148.86 × 4.59 (H×V×D)
Treatment：Hard coating (3H)
Contrast Ratio： 900 : 1 (Typ.) (TM)
Work Mode： PLS, Normally Black, Transmissive
Response：30 (Typ.)(Tr+Td) ms
Backlight：4 strings WLED, No Driver
Used for： Pad & Tablet,
Touchscreen：Without
Signal Type：LVDS (1 ch, 8-bit), Connector, 45 pins
Voltage Supply： 3.3V (Typ.)
Max. Ratings： Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C
