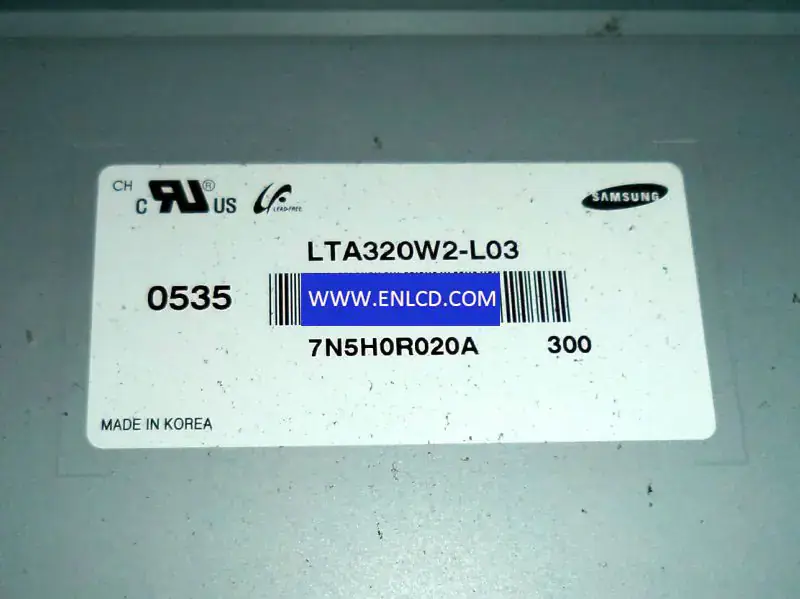

LTA320W2-L03 Samsung LCD panel replacement for TV Sets

Brand：SAMSUNG
Model：LTA320W2-L03
Diagonal Size：31.5 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：1366(RGB)×768[WXGA]
Configuration：RGB Vertical Stripe
Active Area：697.685(H)×392.256(V) mm
Outline Dim.：760(H)×450(V) mm
Bezel Area：702.8(H)×398.4(V) mm
Treatment：Antiglare (Haze 40%), Hard coating (3H)
Luminance：450 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：8/6 (Typ.)(Tr/Td); 8 (Typ.)(G to G)
Viewing Angle：89/89/89/89 (Typ.)(CR≥10)
Operating Mode：APVA, Normally Black, Transmissive
Support Color：16.7M 72%(CIE1931)
Light Source：CCFL[16 pcs], 50K hours, With Inverter
Weight： 7.00/7.50Kgs (Typ./Max.)
Designed For： TV Sets,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 30 pinsLVDS (1 ch, 8-bit), Connector
Power Supply：5.0V (Typ.)
Environment： Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 65 °C
