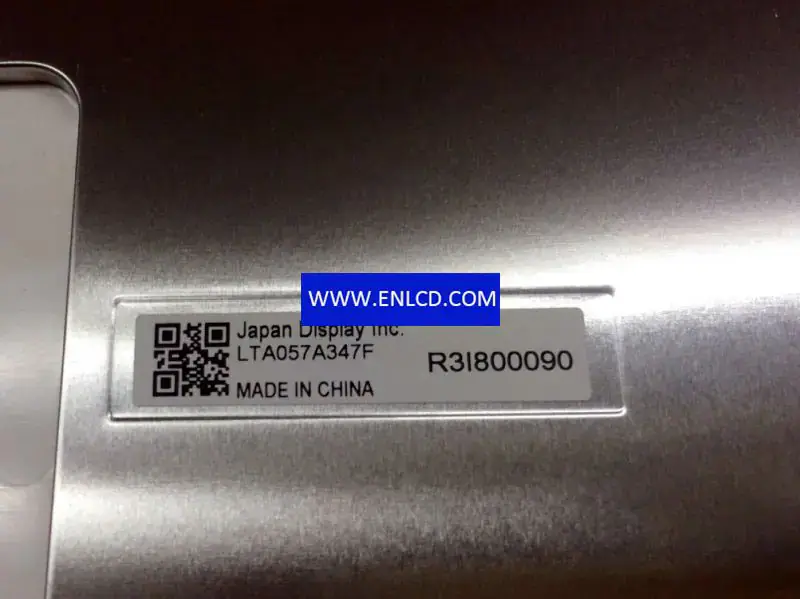

LTA057A347F Toshiba LCD panel replacement for Industrial Application

Brand：Toshiba Matsushita
Model：LTA057A347F
Diagonal Size：5.7 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：320(RGB)×240[QVGA]
Configuration：RGB Vertical Stripe
Active Area：115.2(H)×86.4(V) mm
Outline Dim.：144(H)×104.6(V)×10(D) mm
Bezel Area：119.0(H)×90.2(V) mm
Treatment：-
Luminance：320 cd/m2 (Typ.)
Contrast Ratio：500:1 (Typ.) (TM)
View Direction：-
Response Time：50/50 (Max.)(Tr/Td)
Viewing Angle：70/70/60/60 (Typ.)(CR≥10)
Operating Mode：TN, Normally White, Transmissive
Support Color：262K
Light Source：WLED[6S3P], 20K hours, W/O Driver
Weight： –
Designed For： Industrial Application,
Frame Rate：-
Touch Panel：Embeded (4-wire Resistive)
Interface Type： 33 pinsCMOS (1 ch, 6-bit), Connector
Power Supply：3.3V (Typ.)(VDD)
Environment： Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C
