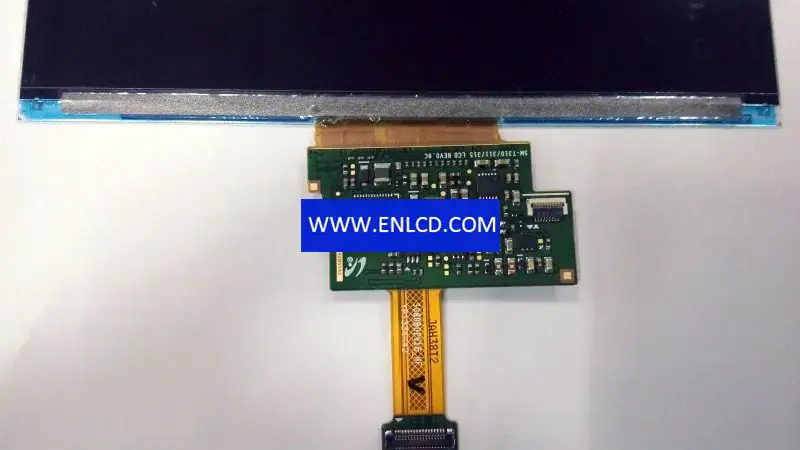

LSL080AL02-002 Samsung LCD panel replacement for Pad & Tablet

Brand：SAMSUNG
Model：LSL080AL02-002
Diagonal Size：8.0 inch
Type：a-Si TFT-LCD ， CELL
Pixel Format：800(RGB)×1280[WXGA]
Configuration：RGB Vertical Stripe
Active Area：107.64(H)×172.224(V) mm
Outline Dim.：112.64(H)×181.824(V)×0.69(D) mm
Bezel Area：-
Treatment：Glare (Haze 0%)， Hard coating
Luminance：0 cd/m2
Contrast Ratio：900:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：16 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：PLS， Normally Black， Transmissive
Plate Thickness：0.20+0.20 mm
Transmittance：6.6% (Typ.)(with Polarizer)
Support Color：16.7M
Light Source：No B/L
Weight： 45.0g (Max.)
Designed For： Pad & Tablet,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 34 pinsMIPI (4 data lanes)， Connector
Power Supply：1.8/3.3V (Typ.)(DVDD/PVDD)
Environment： Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C
