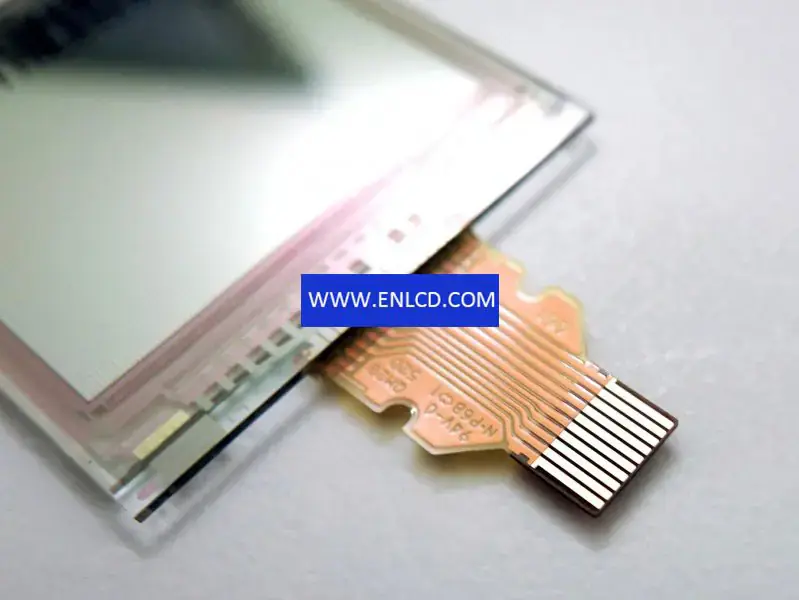

SHARP LS013B4DN04 LCD panel

Brand：SHARP
Model：LS013B4DN04
Diagonal Size：1.35 inch
Type：CG-Silicon, LCM
Pixel Format：96×96
Configuration：Rectangle
Active Area：24.192(H)×24.192(V) mm
Outline Dim.：28.2(H)×32.34(V) mm
Bezel Area：-
Treatment：Without Polarizer, Hard coating (3H)
Luminance：-
Contrast Ratio：10:1 (Typ.) (RF)
View Direction：-
Response Time：50/50 (Typ.)(Tr/Td)
Viewing Angle：60/60/60/60 (Min.)(CR≥3)
Operating Mode：PNLC, Reflective
Support Color：Monochrome
Light Source：No B/L
Weight： 3.60g (Typ.)
Designed For： Electronic Price Tag, Smart Watch,
Frame Rate：-
Touch Panel：Without
Interface Type： 10 pinsSPI, FPC
Power Supply：3.0/3.0V (Typ.)(VDDA/VDD)
Environment： Operating Temperature: -10 ~ 60 °C –
