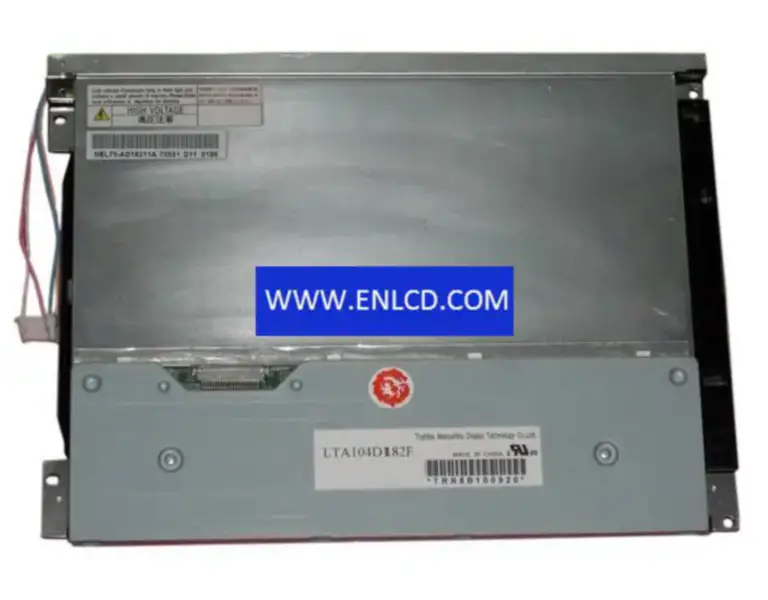

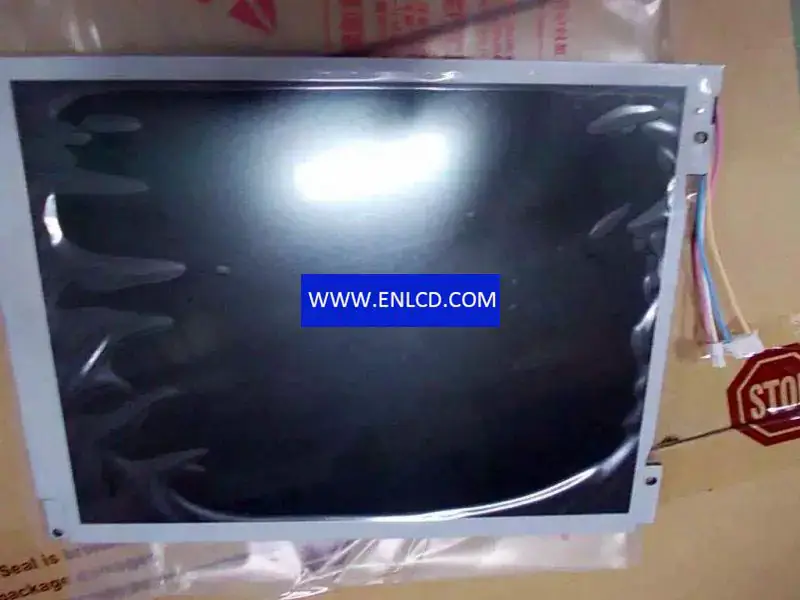

LTA104D182F Toshiba LCD panel replacement for Industrial Application

$69.00

LTA104A261F Toshiba LCD panel replacement

$243.00

LTA090B400F Toshiba LCD panel replacement

$41.00

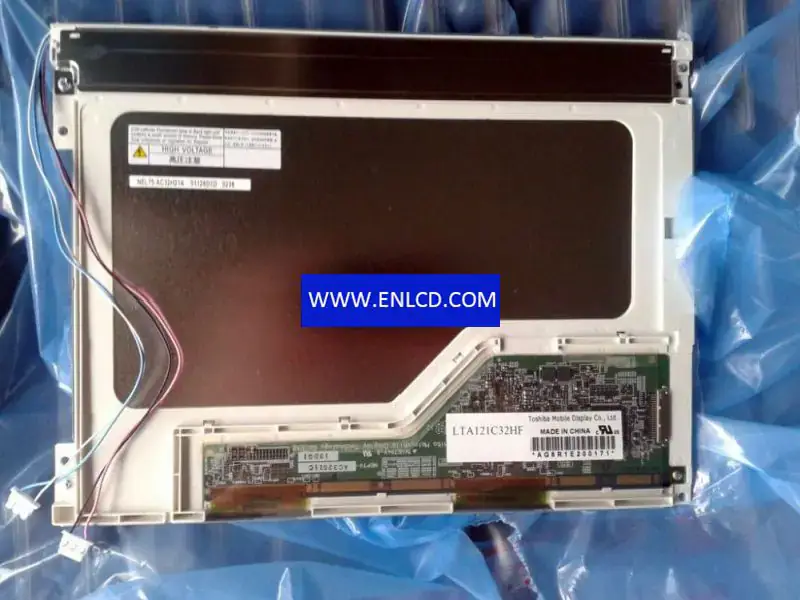

LTA121C32HF Toshiba LCD panel replacement for Industrial Application

$50.00

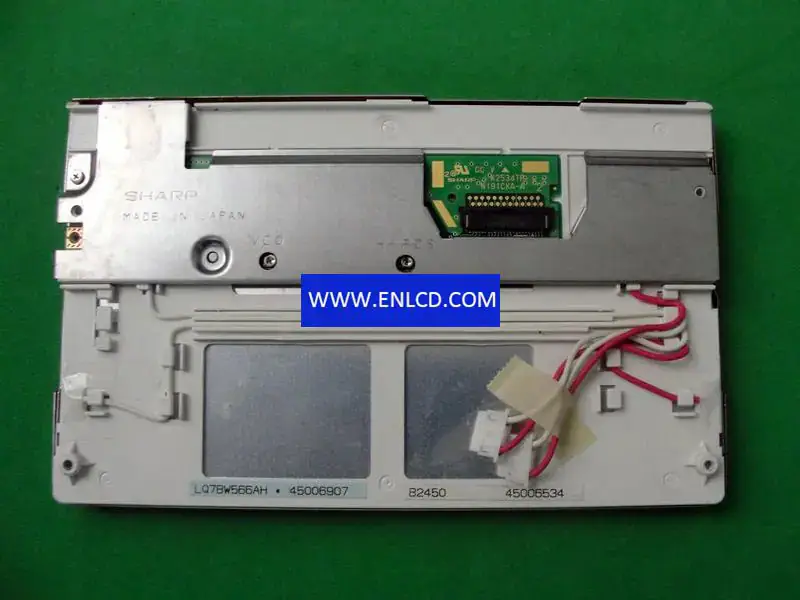

Sharp LQ7BW566AH LCD

Stock:

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

{{ variable.name }} : {{ variable.values[selectedVariantsIndex[variable_index]].name }}

Condition:

Quantity:

Product Details

Specification

Model P/N:LQ7BW566AH
Brand:Sharp
Diagonal Size:7.0"
Resolution:480(RGB)×234 75PPI
Viewing Angle:-
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:155.52(W)×87.75(H) mm
Bezel Opening:-
View Direction:-
Response Time:-
Operating Mode:TN, Normally White, Transmissive
Support Color:Full color
Light Source:CCFL [2 pcs]
Weight:-
Designed For:Automotive Display
Frame Rate:-
Touch Panel:Without
Interface Type:Analog Connector
