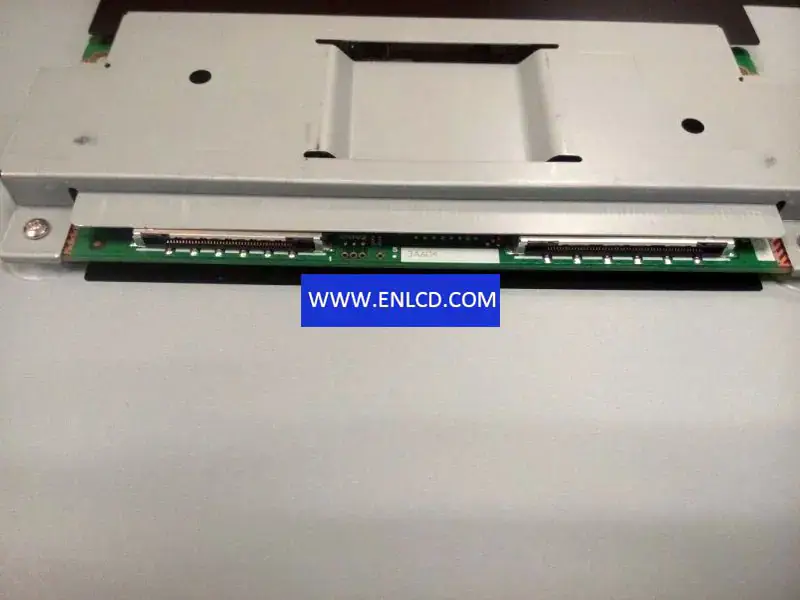

LQ235D1LW03 SHARP LCD panel replacement for Touchscreen

Manufacturer：SHARP
Model Name：LQ235D1LW03
Screen Size：23.6 inch
Screen Type：LCM,a-Si TFT-LCD
Pixel Number：1920(RGB)×1080 (FHD)
Arrangement：RGB Vertical Stripe
Active Area(mm)：521.28 × 293.22 (H×V)
Outline(mm)： 554.8 × 319× 21.4 (H×V×D)
Bezel Area(mm)：525.26 × 297.22 (H×V)
Treatment：Antiglare (Haze 2%), Hard coating (3H)
Luminance：400 cd/m2 (Typ.)
Contrast Ratio：5000 : 1 (Typ.) (TM)
Viewing Angle：88/88/88/88 (Typ.)(CR≥10)
Response：4 (Typ.)(G to G) ms
Good View at：Symmetry
Work Mode：UV2A, Normally Black, Transmissive
Color Depth：1.07B 72%(CIE1931)
Backlight：13S4PWLED, 40K hours, No Driver
Mass： 2.80Kgs
Used for： Industrial Application, Medical Imaging,
Refresh Rate：120Hz
Touchscreen：Without
Signal Type： LVDS (4 ch, 10-bit), Connector , 92 pins
Voltage Supply：12.0V (Typ.)
Max. Ratings： Storage Temp.: -25 ~ 60 °COperating Temp.: 0 ~ 50 °C
