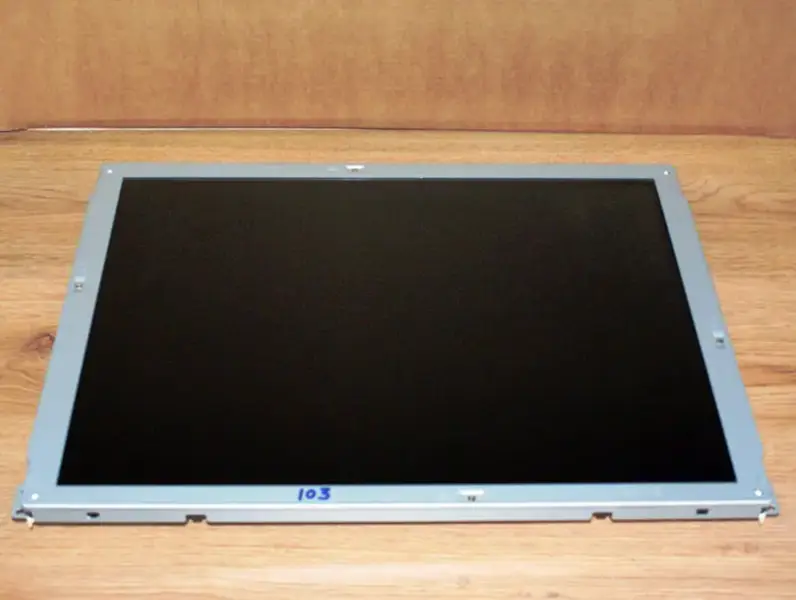

Sharp LQ197V3DZ84 LCD

Specification

Model P/N:LQ197V3DZ84
Brand:Sharp
Diagonal Size:19.7"
Resolution:640(RGB)×480, VGA 40PPI
Contrast Ratio:600 : 1 (Typ.) (TM)
Viewing Angle:85/85/85/85 (Typ.)(CR≥10)
Color Depth:16.2M 73% NTSC
Backlight:5 pcs CCFL , 50K hours , With Inverter
Signal Type:Parallel RGB (1 ch, 8-bit) , 50 pins Connector
Panel Type:a-Si TFT-LCD, LCM
Pixel Format:RGB Vertical Stripe
Active Area:401.28(W)×298.8(H) mm
Bezel Opening:406.3(W)×303.8(H) mm
Treatment:Antiglare (Haze 23%), Hard coating (2H), Antireflection
Luminance:450 cd/m² (Typ.)
Outline(mm):462.6 × 338.5 × 46 (H×V×D)
Response:20 (Typ.)(Tr+Td) ms
Good View at:Symmetry
Work Mode:Normally Black, Transmissive
Mass:2.30±0.15Kgs
Used for:TV Sets
Refresh Rate:-
Touchscreen:Without
Voltage Supply:5.0V (Typ.)
Max Ratings:Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C
