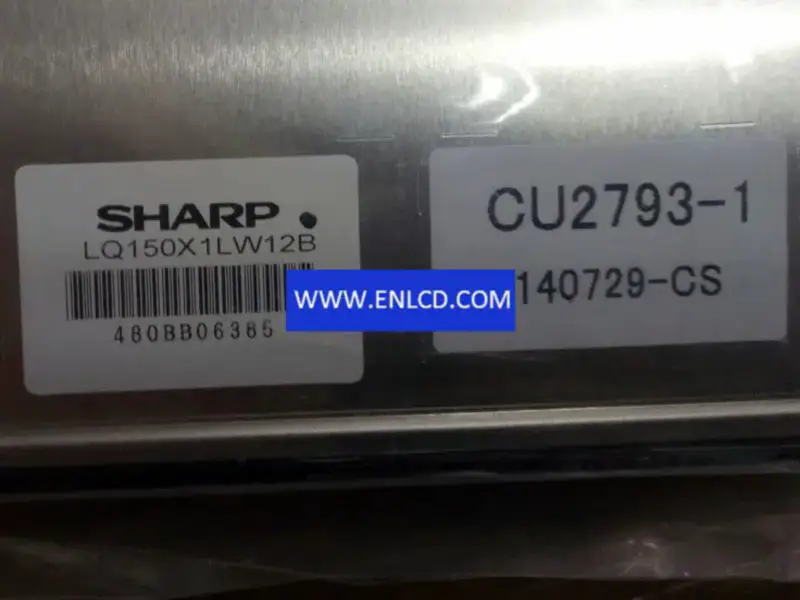

LQ150X1LW12B SHARP LCD panel replacement

Brand：SHARP
Model：LQ150X1LW12B
Diagonal Size：15.0 inch
Type：a-Si TFT-LCD， LCM
Pixel Format：1024(RGB)×768[XGA]
Configuration：RGB Vertical Stripe
Active Area：304.128(H)×228.096(V) mm
Outline Dim.：331.6(H)×254.76(V)×9.8(D) mm
Bezel Area：307.2(H)×231.1(V) mm
Treatment：Antiglare， Hard coating (3H)
Luminance：350 cd/m2 (Typ.)
Contrast Ratio：1000:1 (Typ.) (TM)
View Direction：Symmetry
Response Time：30 (Typ.)(Tr+Td)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Operating Mode：ASV， Normally Black， Transmissive
Support Color：16.2M
Light Source：WLED， 70K hours， With LED Driver
Weight： 950g (Max.)
Designed For： Industrial Application, Medical Imaging,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 20 pinsLVDS (1 ch， 8-bit)， Connector
Power Supply：3.3V (Typ.)
Environment： Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -25 ~ 65 °C
