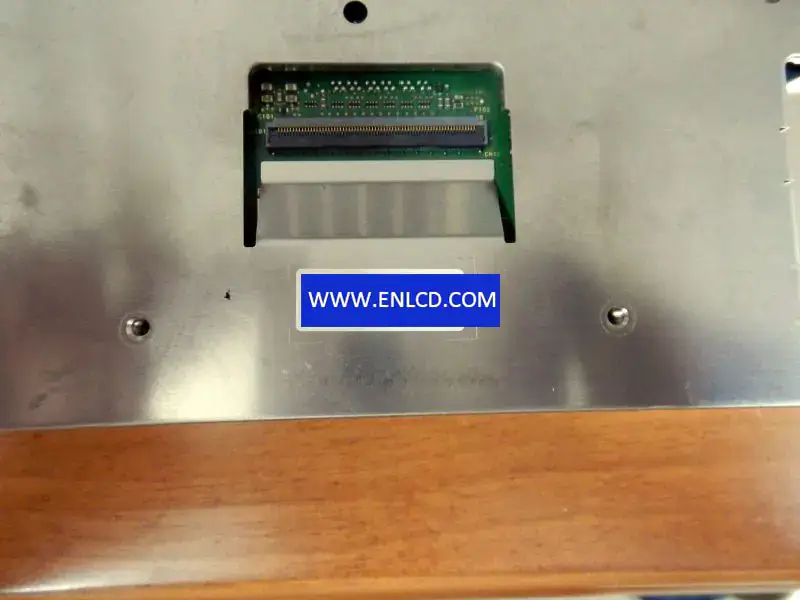

SHARP LQ101K5DZ01 LCD panel for Automotive Display

Panel Brand：SHARP
Panel Model：LQ101K5DZ011 Compatible
Panel Size：10.1 inch
Panel Type：a-Si TFT-LCD, LCM
Resolution：1280(RGB)×422
Pixel Format：RGB Vertical Stripe
Display Area：242.88(W)×80.07(H) mm
Bezel Opening：244.88(W)×82.1(H) mm
Outline Size：259.7(W)×96.5(H) mm
Surface：Antiglare, Reflection 1.5% (Typ.)
Brightness：500 cd/m2 (Typ.)
Contrast Ratio：2000:1 (Typ.) (TM)
Viewing Angle：85/85/85/85 (Typ.)(CR≥10)
Display Mode：ASV, Normally Black, Transmissive
Best View on：Symmetry
Response Time：15/5 (Typ.)(Tr/Td)
Display Colors：16.2M 64%(CIE1931)
Lamp Type：WLED, 10K hours, With LED Driver
Frequency： 60Hz
Touch Screen：Without
Panel Weight： 470g (Typ.)
Application： Automotive Display,
Signal Interface： Parallel RGB (1 ch, 8-bit), 68 pins , Connector
Input Voltage：3.3V (Typ.)
Environment： Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C
