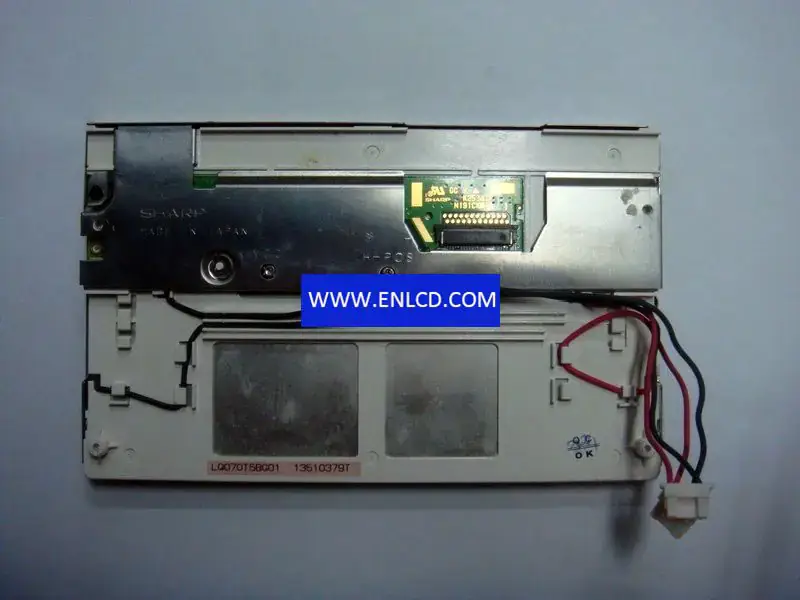

LQ070T5BG01 SHARP LCD panel replacement for Touch Panel

Brand：SHARP
Model：LQ070T5BG01
Diagonal Size：7.0 inch
Type：a-Si TFT-LCD, LCM
Pixel Format：480(RGB)×234
Configuration： RGB Vertical Stripe
Active Area：155.52(H)×87.75(V) mm
Outline Dim.：173(H)×106(V)×15.2(D) mm
Bezel Area：-
Treatment：Antiglare
Luminance：300 cd/m2 (Typ.)
Contrast Ratio： 60:1 (Min.) (TM)
View Direction：6 o’clock
Response Time：30/50 (Typ.)(Tr/Td)
Viewing Angle：65/65/40/65 (Typ.)(CR≥5)
Operating Mode：TN, Normally White, Transmissive
Support Color：Full color
Light Source：CCFL[2 pcs], 10K hours, W/O Driver
Weight： 285±20g
Designed For： Video Door Phone, Digital Photo Frame,
Frame Rate：60Hz
Touch Panel：Without
Interface Type： 24 pinsAnalog RGB + Composite Video (NTSC/PAL), Connector
Power Supply：5.3/13/-16V (VSH/VGH/VGL)
Environment： Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -25 ~ 70 °C ; Vibration Level: 3.0G (29.4 m/s2)
